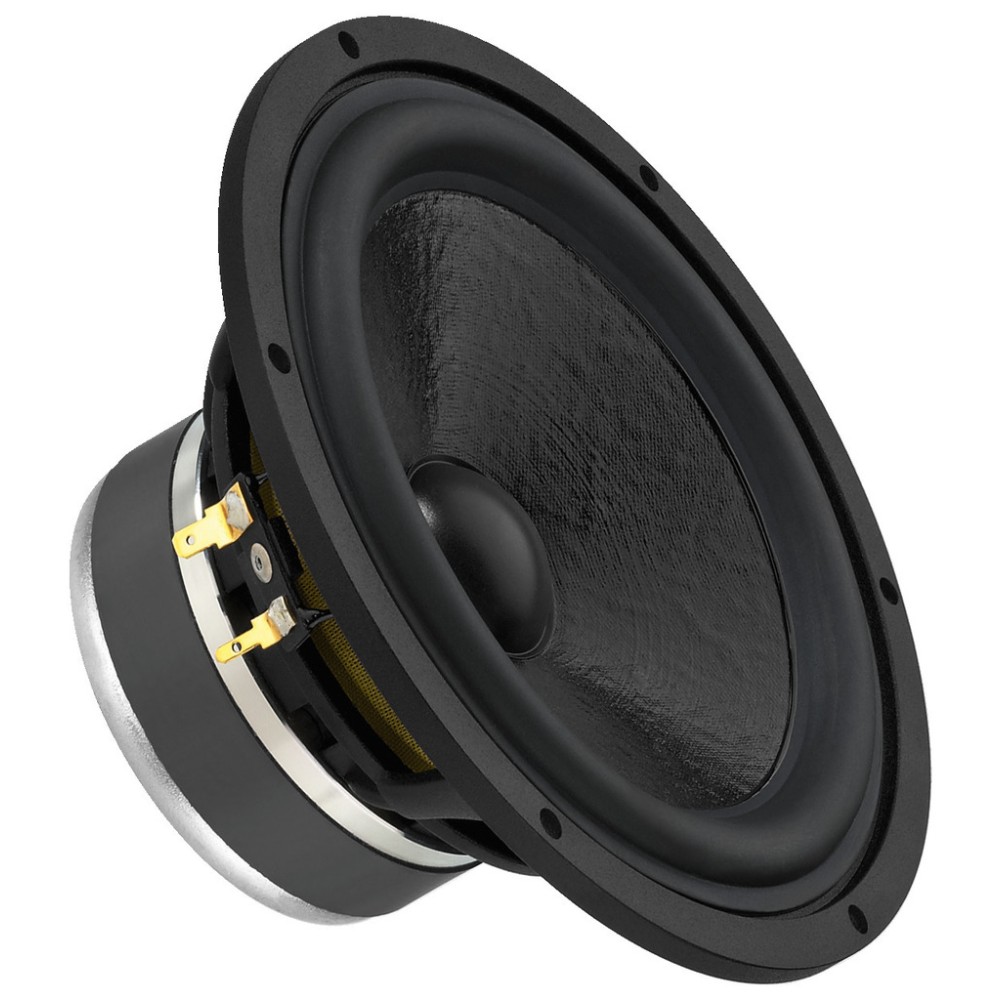

Monacor SPH-175HQ
Monacor SPH-175HQ
Monacor SPH-175HQ
Monacor SPH-175HQ
Monacor SPH-175HQ
Monacor SPH-175HQ
Monacor SPH-175HQ
Monacor SPH-175HQ

Monacor SPH-175HQ

PROD213
Temporarily out of stock
€ 100.73
Tax included

SPH-175HQ

  • High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω
  • 175 mm (6 3/4") bass-midrange speaker
  • Further development of the classic speaker SPH-176
  • Diecast basket
  • Rear-ventilated centering spider for minimum mechanical loss
  • Scooped, air-dried, low-resonance paper cone
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideal parameters for bass-reflex systems

Klang+Ton 06/2014

“Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials.”

HOBBY HiFi 03/2014

“An exceptionally high-quality radiation without any cone resonance.”

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)

Brand



Technical specifications SPH-175HQ

  • SPH-175HQ
  • Impedance (Z) 8 Ω

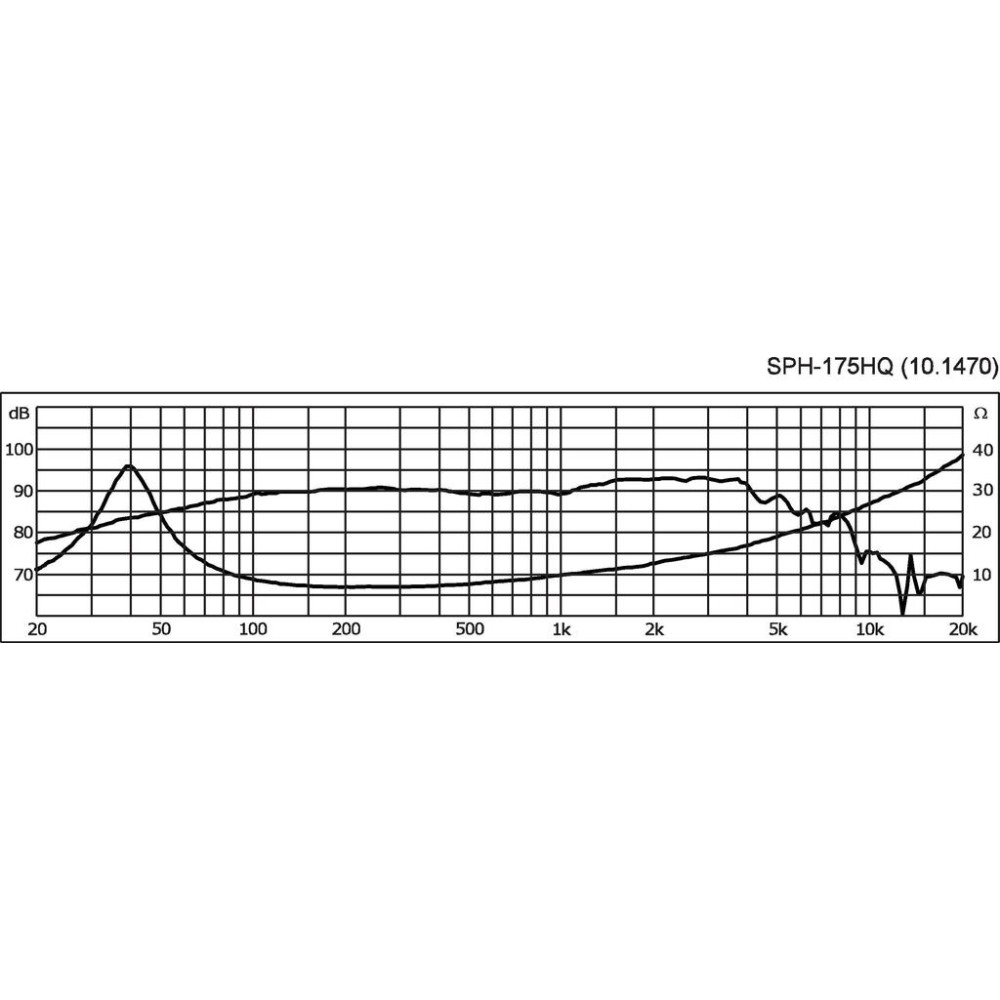

  • Frequency range f3-4,000 Hz
  • Resonant frequency (fs) 39 Hz
  • Power rating (RMS) 70 W
  • Peak music power output (MAX) 120 W
  • SPL 89 dB/W/m
  • Suspension compl. (Cms) 1.2 mm/N
  • Moving mass (Mms) 13.9 g
  • Mech. Q factor (Qms) 2.57
  • Electr. Q factor (Qes) 0.5
  • Total Q factor (Qts) 0.42
  • Equivalent volume (Vas) 33.0 l
  • DC resistance (Re) 6.5 Ω
  • Force factor (BxL) 6.40 Tm
  • Voice coil induct. (Le) 0.71 mH
  • Voice coil diameter Ø 25 mm
  • Voice coil former
  • Linear excursion (XMAX) ± 5.5 mm
  • Eff. cone area (Sd) 140 cm2
  • Magnet weight 450 g
  • Magnet diameter Ø 90 mm

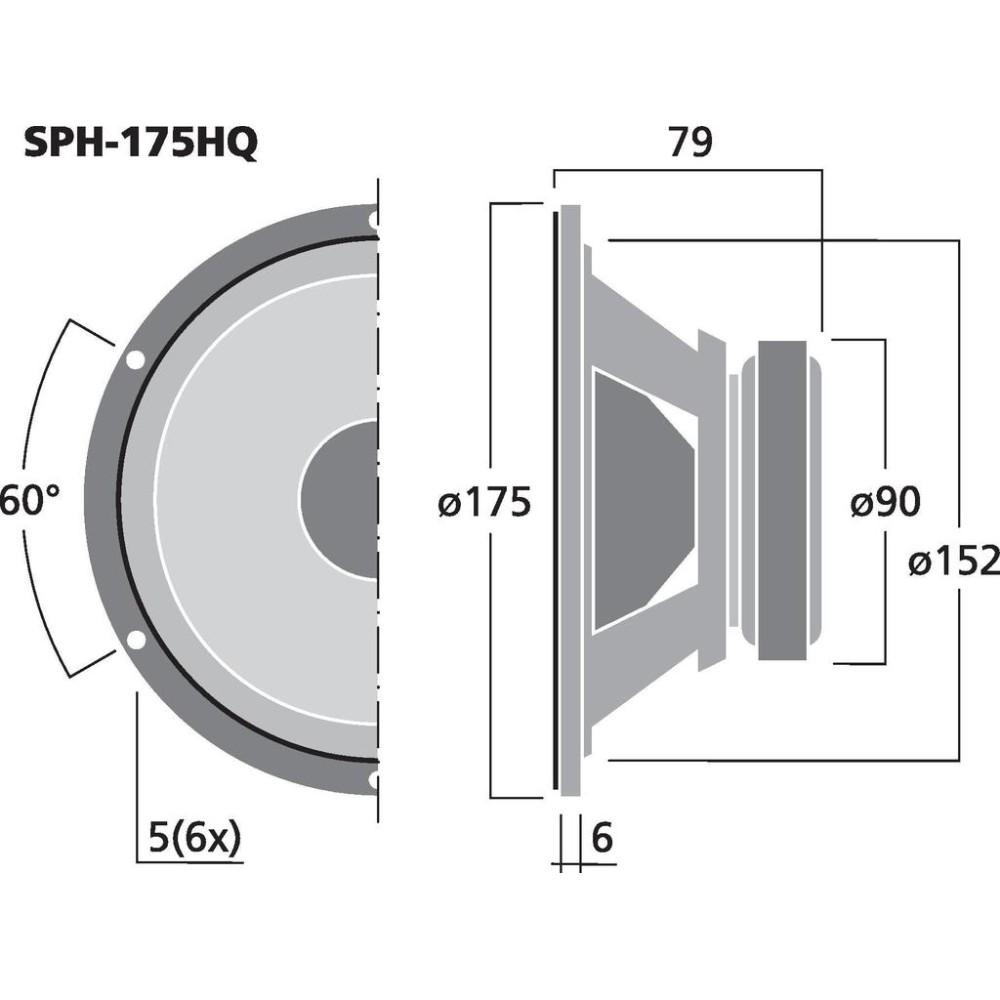

  • Mounting cutout Ø 152 mm
  • Mounting depth 73 mm
  • Mounting hole diameter Ø 165 mm
  • Dimensions Ø 175 mm x 79 mm
  • Outside diameter Ø 175 mm
  • Width Ø 175 mm
  • Depth 79 mm
  • Colour black
  • Admiss. ambient temp. 0-40 °C
  • Weight 1.31 kg
  • Packing unit 1
  • Type of speaker 6.75"
  • Packing dimensions (W x H x L) 0.2 x 0.15 x 0.2 m
  • Gross weight 1.57 kg
  • Net weight 1.31 kg
