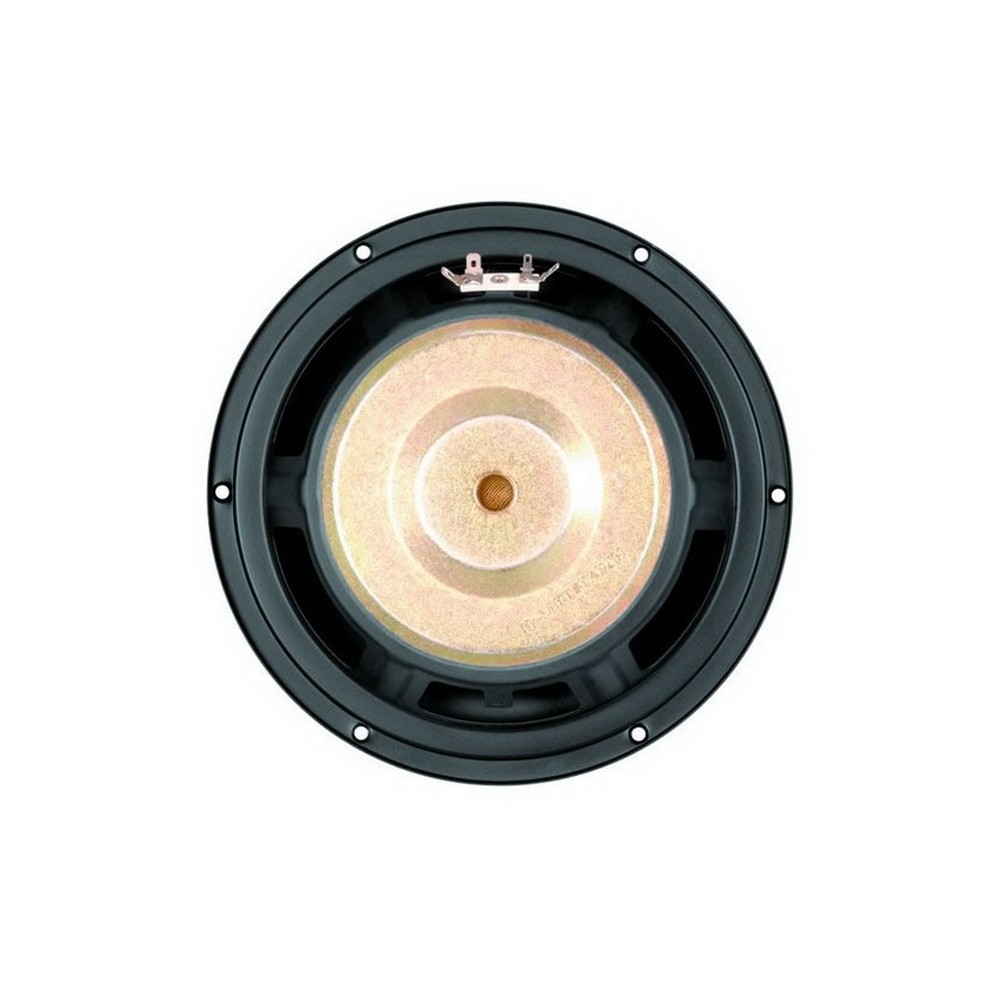

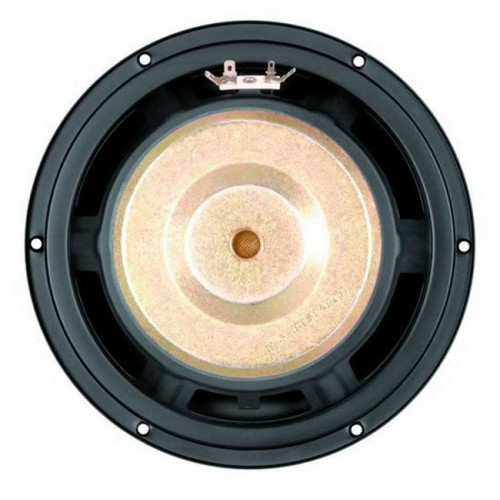

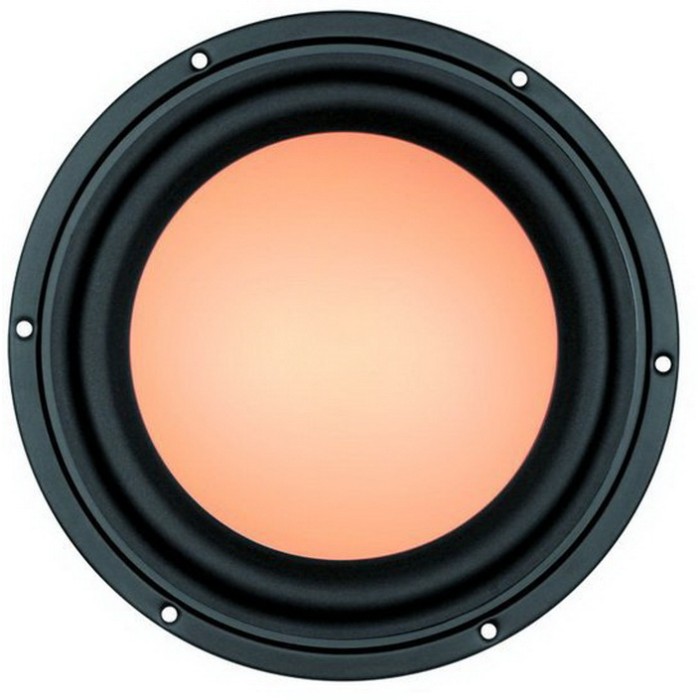

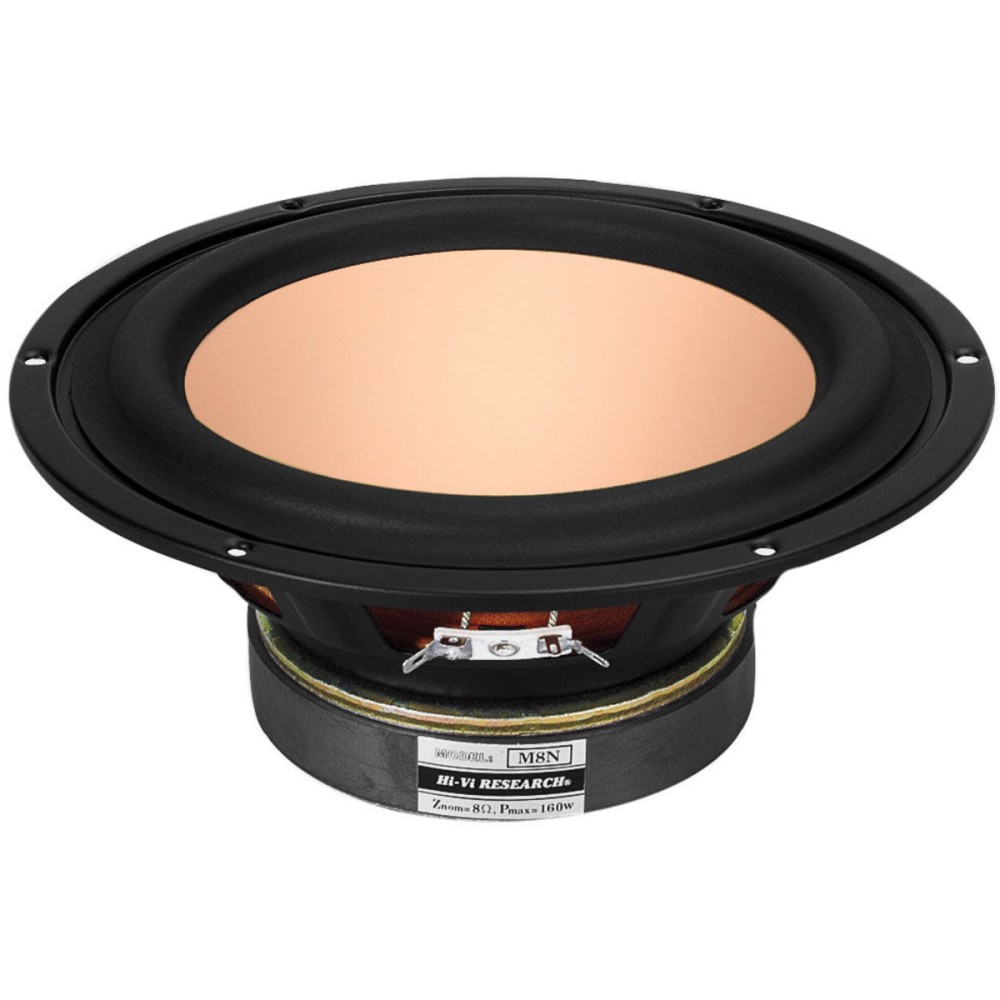

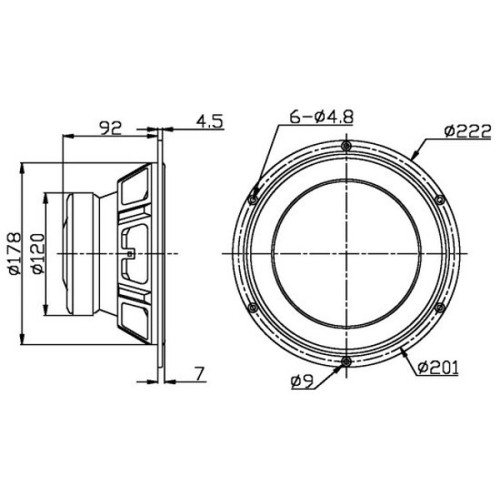

HiVi M8N 8" Aluminum / Magnesium Woofer

Name: HiVi M8N 8" Aluminum / Magnesium Woofer
Brand: HIVI
SKU: PROD232
Price: 55 EUR
Availability: InStock

Reference PROD232

In stock 40 pcs.

In Stock

€ 55.00

Tax included

Characteristics

Nominal Impedance (Z)(Ω): 8
Resonant Frequency (Fs)(Hz): 29
Rated power (Pnom) (W): 80
Maximum power (Pmax) (W): 160
Sensitivity (2.83v/1m)(dB): 88
Weight (M) (Kg): 2.3
VC diameter (mm): 35
DC (Re)(Ω): 6.5
VC length (H) (mm): 17.5
VC Former : SV
VC frame: Kapton
Magnetic system: outside
Magnet former: ferrite
Force Factor (BL) (N/A): 9.6
Gap Height (He) (mm): 6
Linear deviation (Xmax) (mm): 5.8
Suspension Compliance (Cms) (uM/N): 822
Mechanical Q (Qms): 5.02
Electrical Q (Qes): 0.5
Total Q (Qts): 0.45
Rolling mass (Mms) (g): 36.5
Effective piston area (Sd)(m2): 0.0214
Recommended box volume (Vb) (L): 22
Equivalent air volume (Vas)(L): 53.5
Cabinet type: Ventilated
Tuning Frequency (Fb) (Hz): 34
-3dB Cutoff Frequency (F3)(Hz): 40

Quantity	Unit discount	You Save
4	10%	€ 22.00
8	20%	€ 88.00

(0)

8" | 8 Ω | 80 W

Swans (HiVi-Research) M8N

Incorporated into the Diva line of loudspeakers manufactured by Swans the M8N earned the Exceptional Value Award at The Home Entertainment Show 2000.

In 1999, Swans manufactured M5N woofer with original and beautiful appearance, which is suitable for digital audio and sound signal linear loudspeaker system, which is dynamic and with low distortion. This design has laid another landmark of Swans loudspeaker.

Key Features:

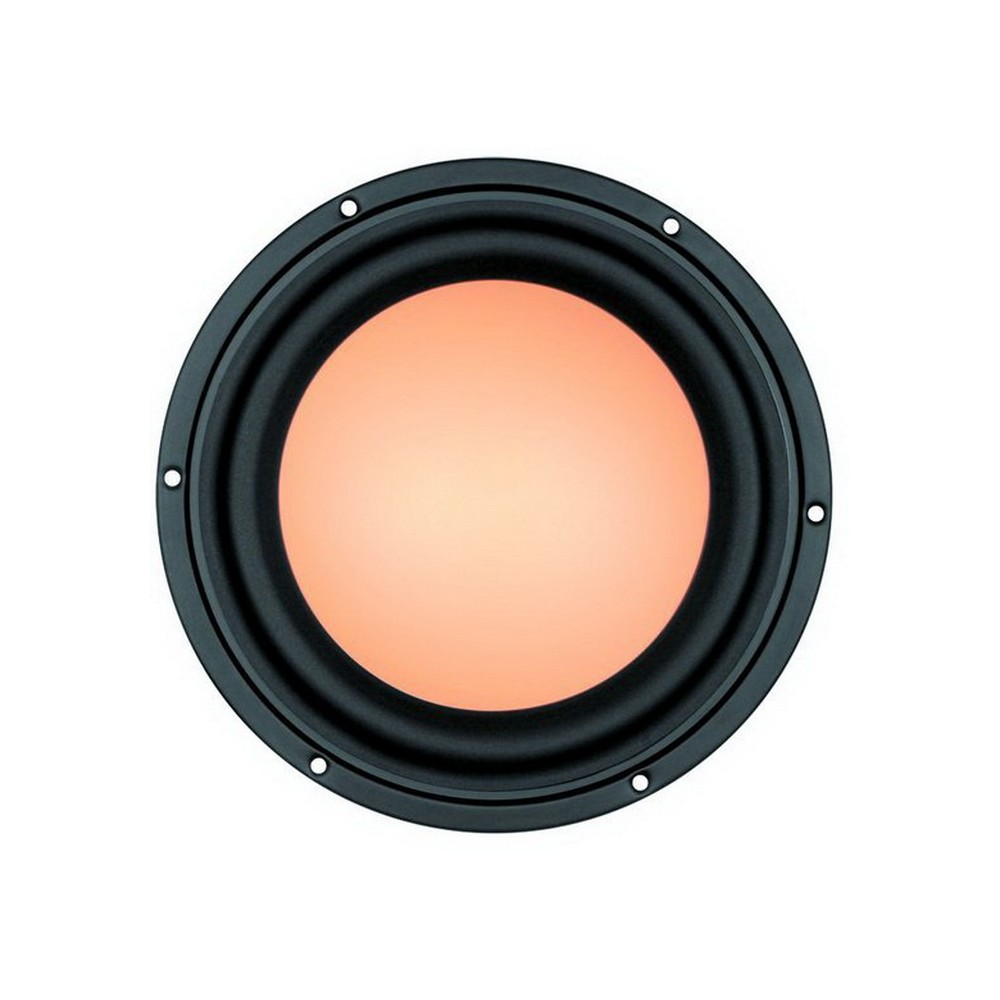

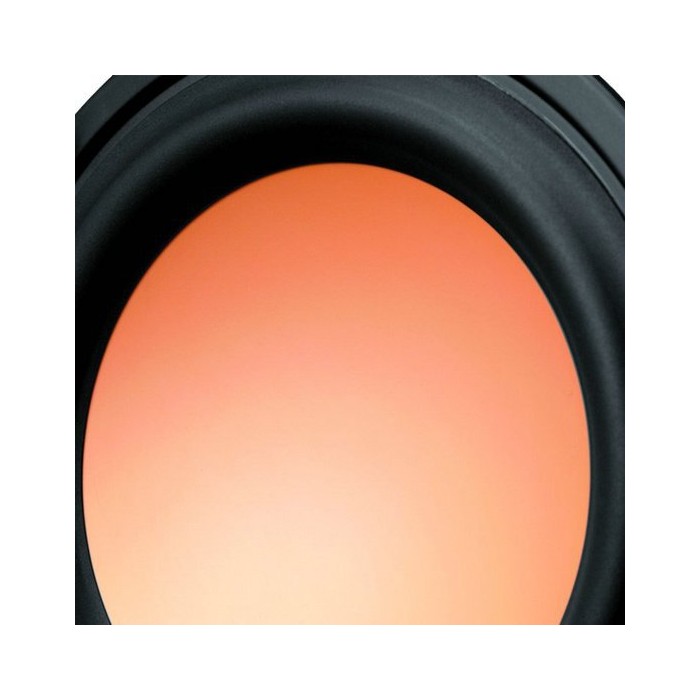

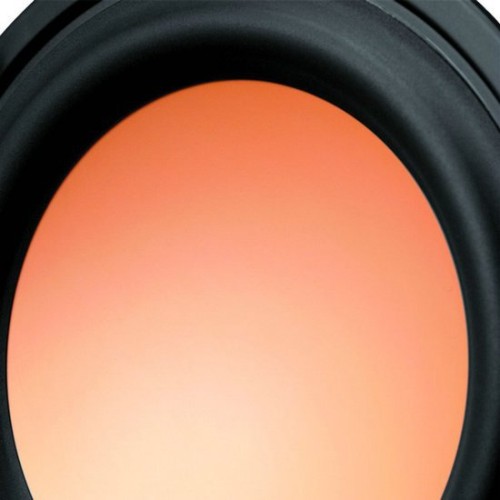

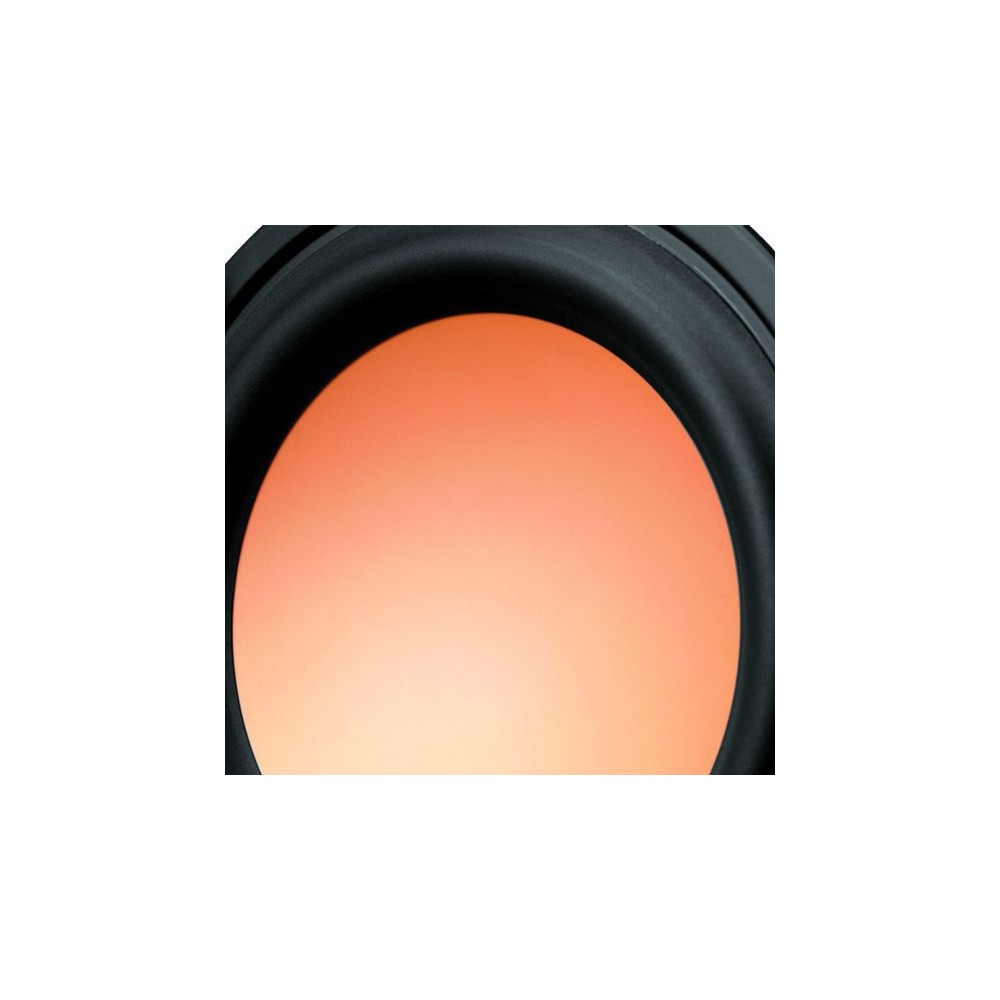

Advanced alloy (magnesium/aluminum) cone, coated with special damping material

Optimum recovery CONEX supporting system, having good rigidity and dynamic stability, improving the sonic features of the driver.

High power handling, heat-resistant Kapton? Voice coil former and heat-resistant SV voice coil wire.

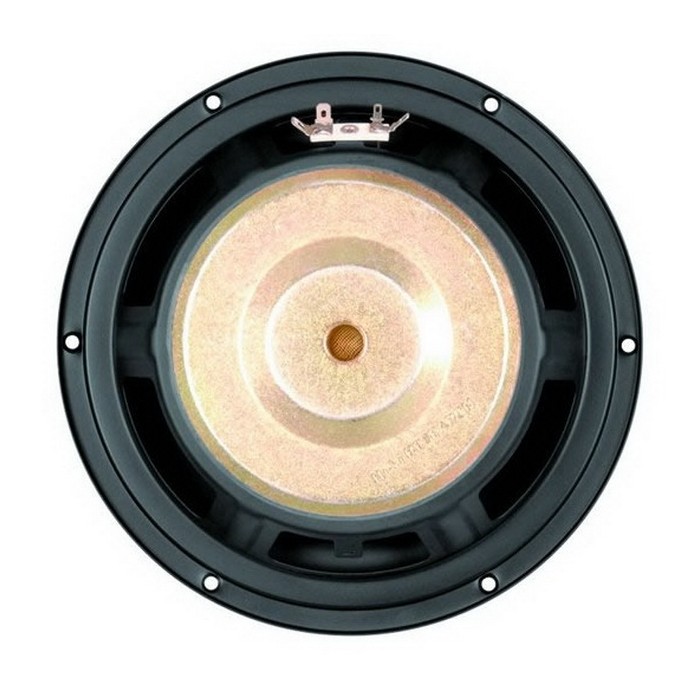

Outside magnetic system with long-throw linear excursion design.

Hi-Vi Symmetric Motor Drive (SMD) technology makes the voice coil into a symmetrical driving magnetic field, thus acquiring symmetrical driving force, reducing voice coil inductance and back electromotive force modulation, improving the controllability of the speakers

Low distortion degree

Finite Element Analysis for flat & rigid iron frame, prevents the parasitic structural resonances

Using leading technology of Small/Thiele parameters in cabinet design

M8N can be used as a bass or midrange in a two-way bookshelf speaker system; or used as a main speaker, center channel speaker, surround speaker, or subwoofer in a home theatre system; it can also be used in multimedia speaker systems.

Diameter: 8"
Impedance: 8 Ω
Power: 80 W
Series: HIVI M
Material: Aluminum
Magnesium
