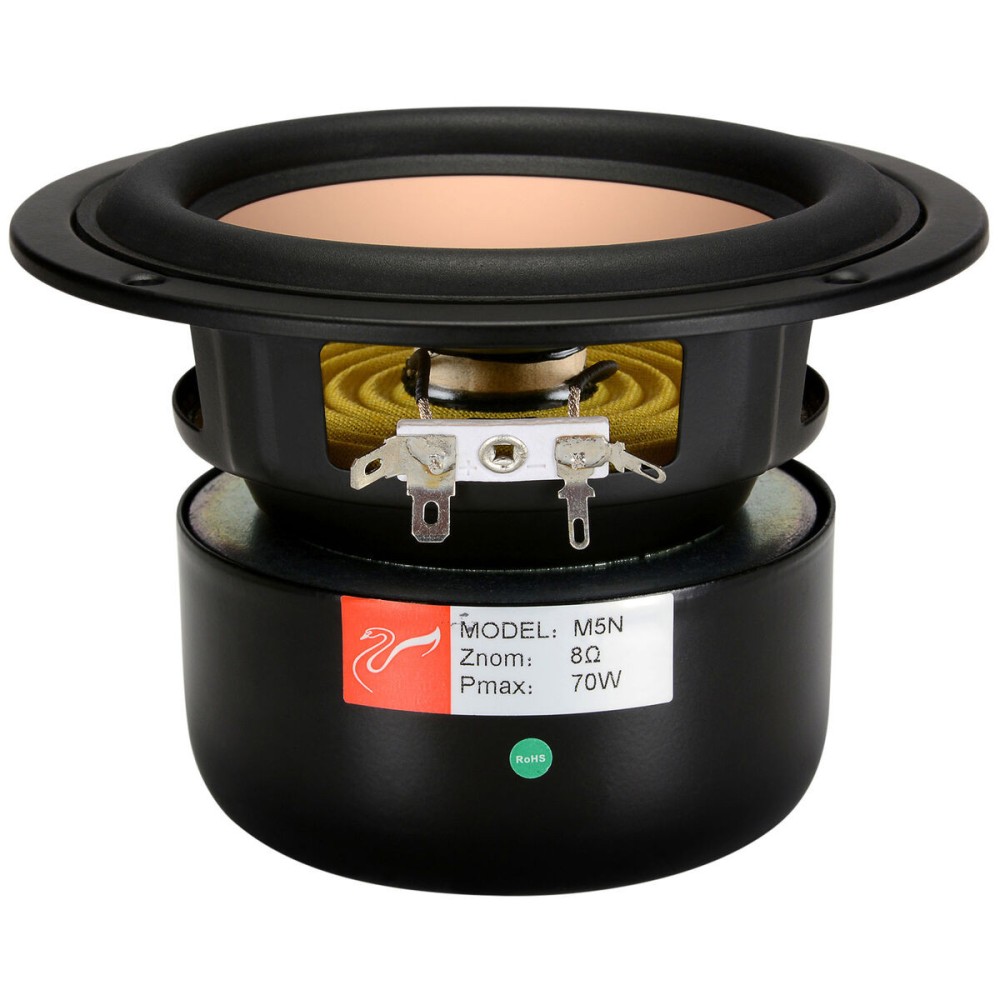

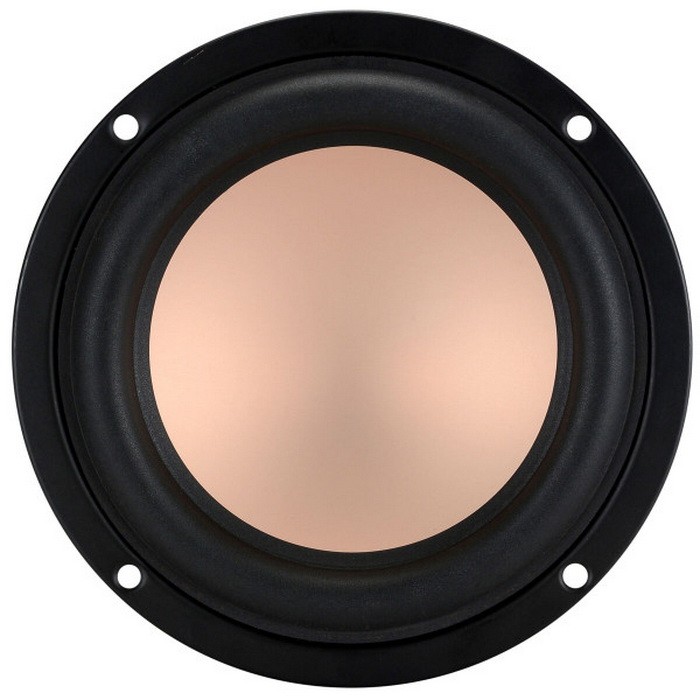

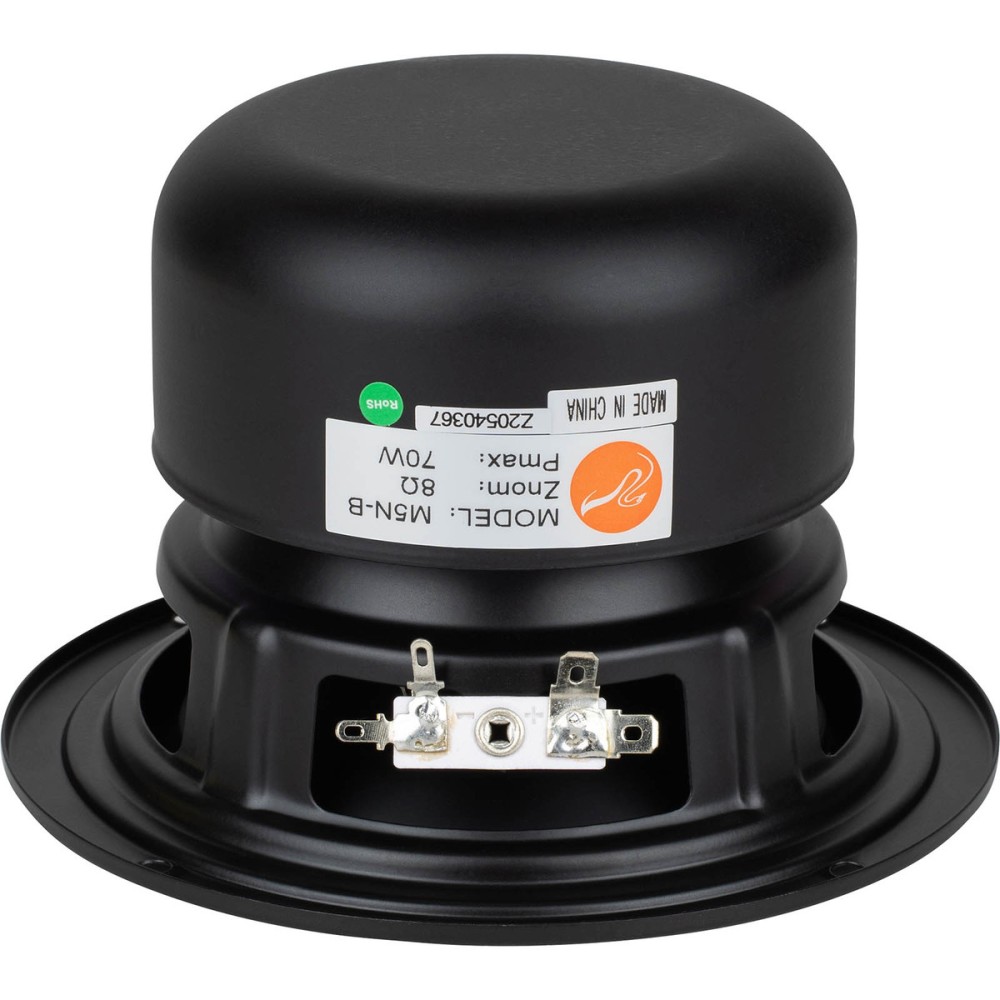

HiVi M5N 5" Aluminum / Magnesium Midbass

HiVi M5N 5" Aluminum / Magnesium Midbass

Name: HiVi M5N 5" Aluminum / Magnesium Midbass
Brand: HIVI
SKU: PROD345
Price: 33 EUR
Availability: InStock

Reference PROD345

In stock 25 pcs.

In Stock

€ 33.00

Tax included

Specifications:

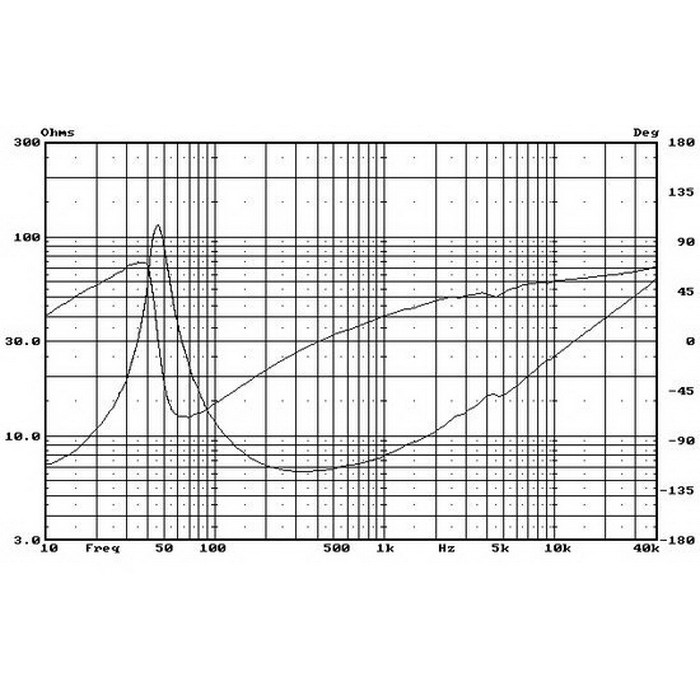

Nominal Impedance:8Ω
Resonant Frequency: 47Hz
Rated Power:35W
Maximum Power Output:70W

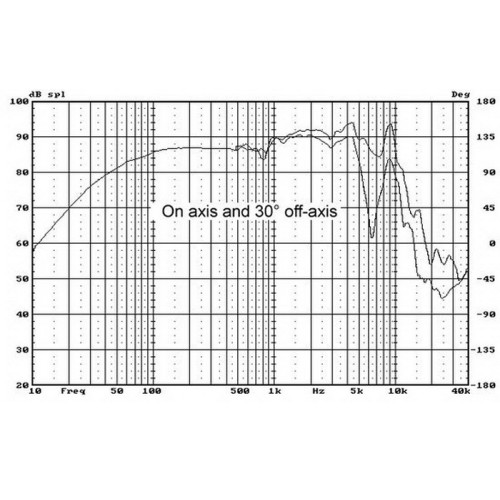

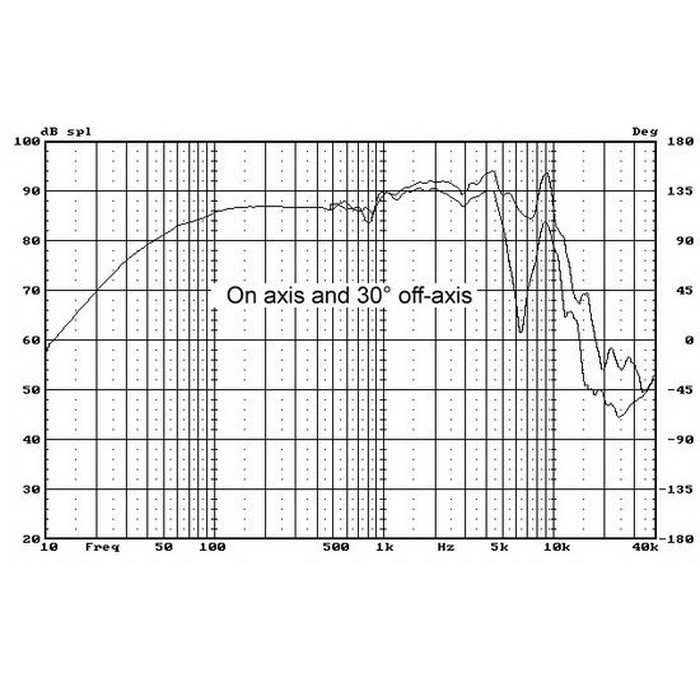

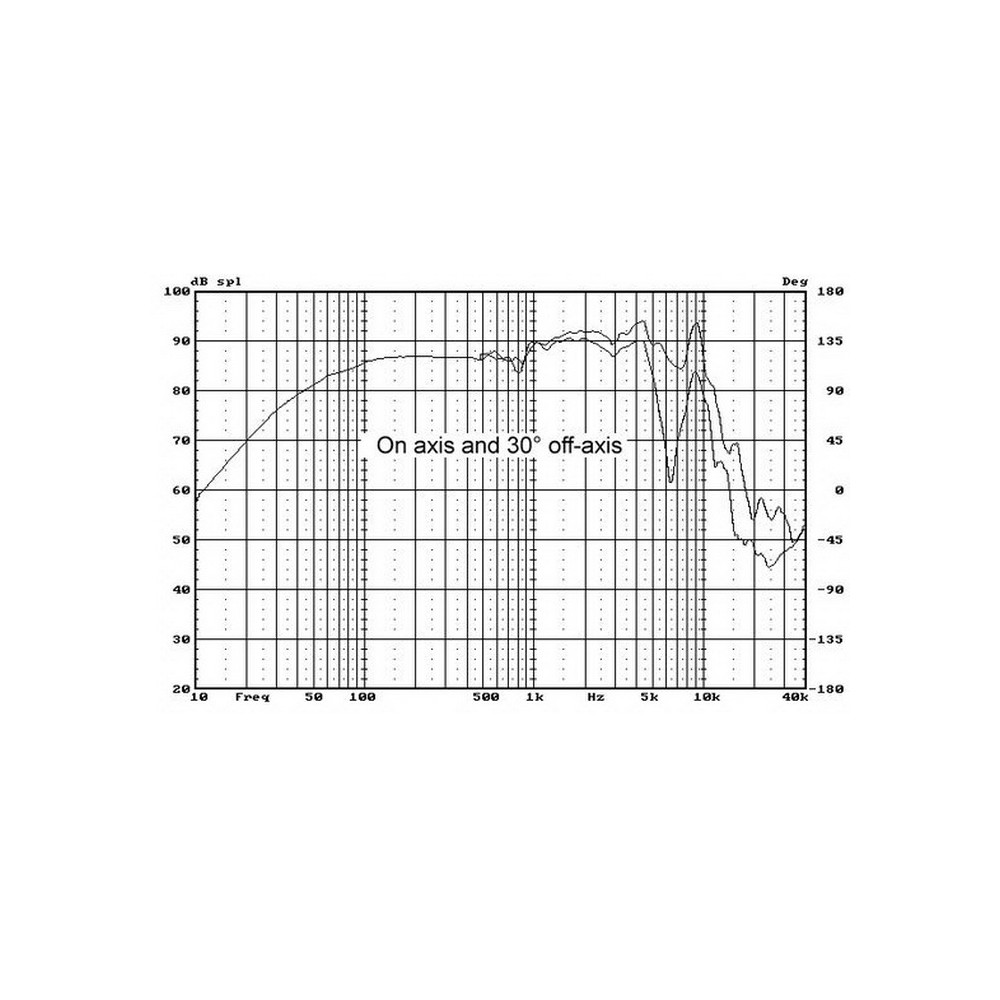

Sensitivity (2.83v / 1m): 87dB
Resistance DC:/ Strong>6.5Ω
Diameter Coil: 25mm
Length Coil:10.4mm
Mounting Type:Kapton
Composition Magnetic Circuit: ferrites
Magnetic Shielding:/ Strong>Yes
BL:7.5
Hey :5.0mm
XmaX:2.7mm
Cms:1051
Qms:6.51
Qes:0.37
Qts:0.35
Mms:10.7g
Sd:0.0087m2
Vas:11.3L
Recommended Type of Load: Bass Reflex
Recommended Load Volume: 10L
Recommended Cut-Off Frequency -3dB: 48Hz
Weight:1.5Kg

(0)

5" | 8 Ω | 40 W

Swans (HiVi-Research) M5N

Incorporated into the Diva line of loudspeakers manufactured by Swans the M5N earned the Exceptional Value Award at The Home Entertainment Show 2000.

In 1999, Swans manufactured M5N woofer with original and beautiful appearance, which is suitable for digital audio and sound signal linear loudspeaker system, which is dynamic and with low distortion. This design has laid another landmark of Swans loudspeaker.

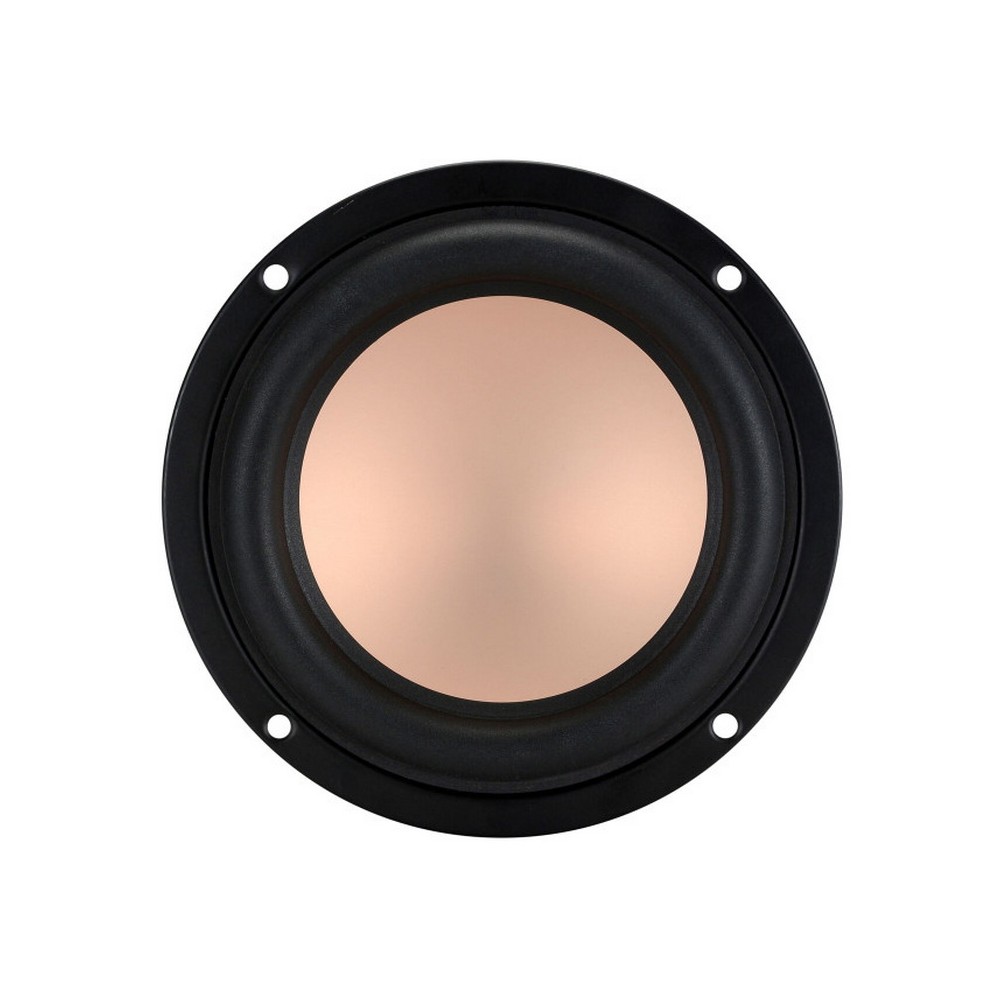

Advanced alloy (magnesium/aluminum) cone, coated with special damping material, having good rigidity and dynamic stability, improving the sonic characteristics of the driver; High power handling, heat-resistant Kapton? Voice coil former and heat-resistant SV voice coil wire; Finite Element Analysis for shielded magnetic system with long-throw linear excursion design.

Hi-Vi Symmetric Motor Drive (SMD) technology makes the voice coil into a symmetrical driving magnetic field, thus acquiring symmetrical driving force, reducing voice coil inductance and back electromotive force modulation, improving the controllability of the speakers; Low distortion degree.

Finite Element Analysis for flat & rigid iron frame, prevent the parasitic structural resonances.

Using leading technology of Small/Thiele parameters.

M5N can be used as a bass or midrange in a two-way bookshelf speaker system; or used as a main speaker, center channel speaker, surround speaker, or subwoofer in a home theater system; it can also be used in multimedia speaker systems.

Diameter: 5"
Impedance: 8 Ω
Power: 40 W
Series: HIVI M
Material: Aluminum
Magnesium
