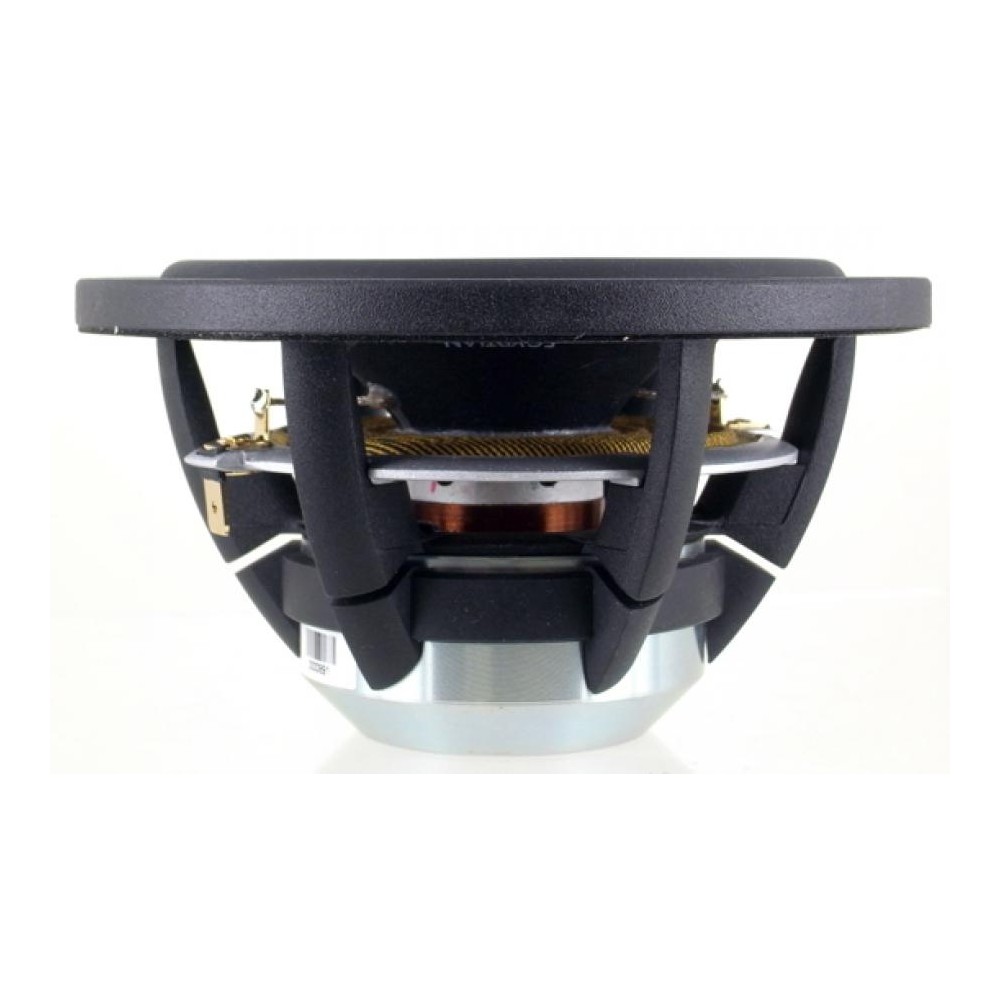

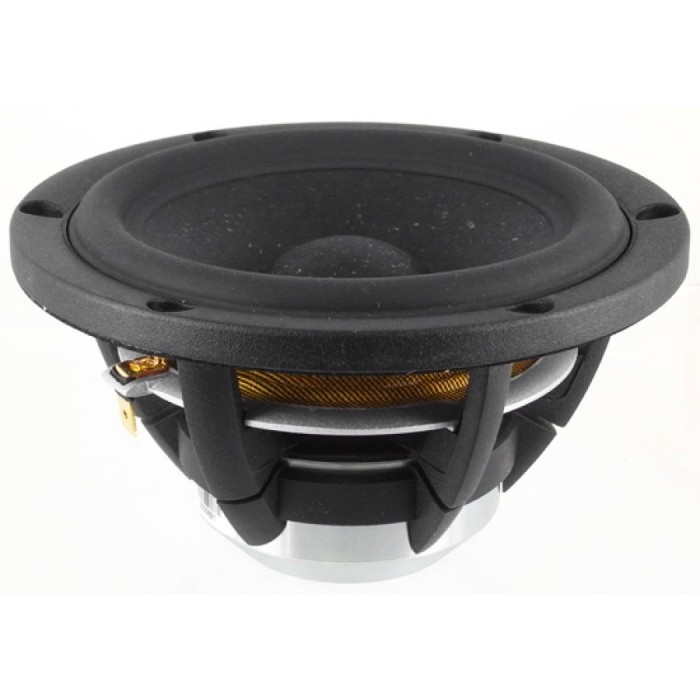

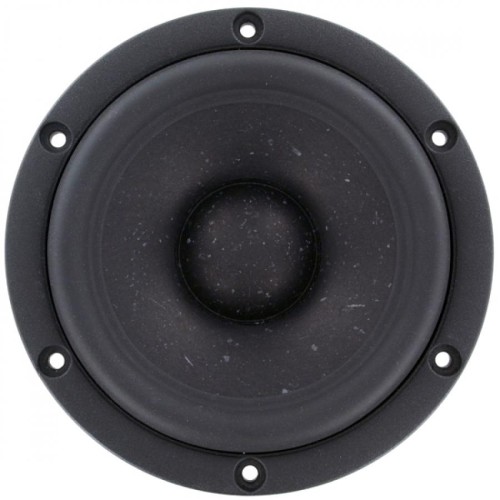

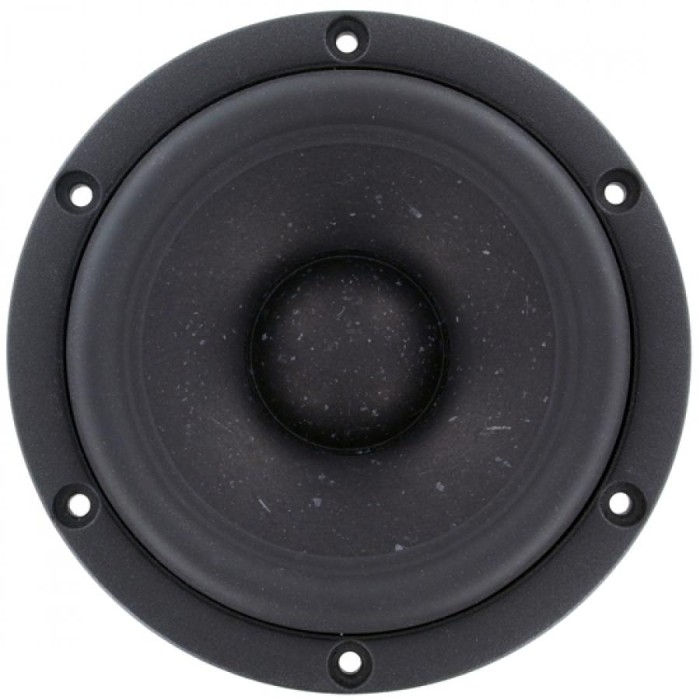

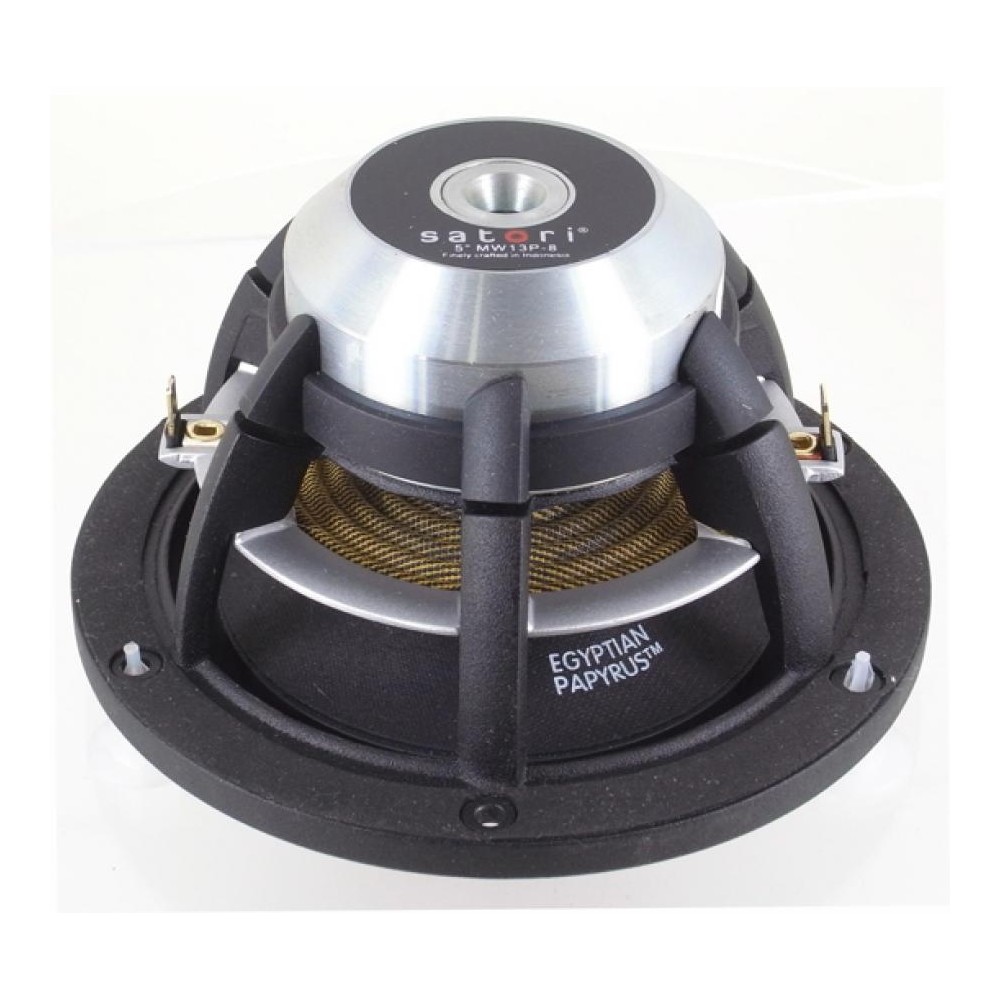

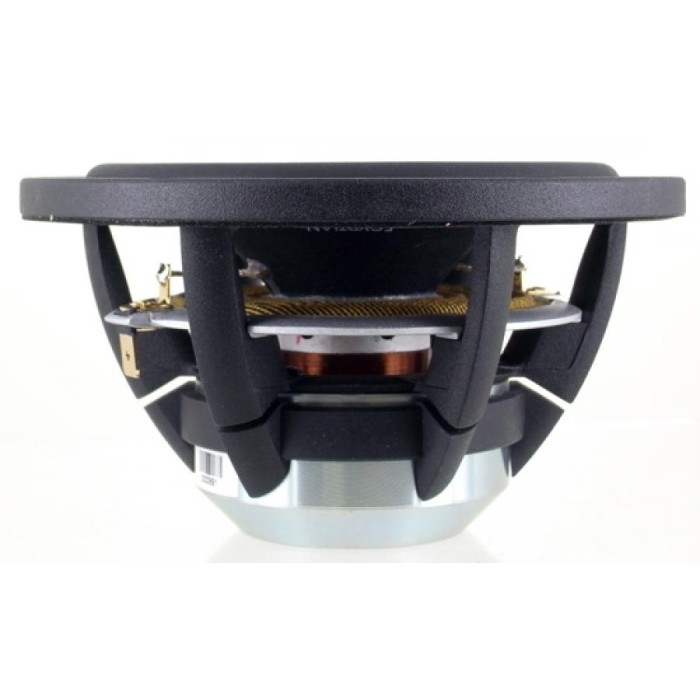

Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm
Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm

Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm

IMPORTED_SB_ACOUSTIC_67
4 pcs.
In Stock
€ 150.83
Tax included
  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • Low piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
Quantity Unit discount You Save
2 5% € 15.08
4 10% € 60.33
8 20% € 241.33

(0)
5" | 8 Ω | 40 W

Brand


  • Nominal Impedance 8 Ω
  • DC resistance, Re 6.0 Ω
  • Voice coil inductance, Le 0.15 mH
  • Effective piston area, Sd 70 cm2
  • Voice coil diameter 30.5 mm
  • Voice coil height 15 mm
  • Air gap height 5 mm
  • Linear coil travel (p-p) 10 mm
  • Magnetic flux density 1.08 T
  • Magnet weight 0.1 kg
  • Net weight 0.78 kg
  • Free air resonance, Fs 41.5 Hz
  • Sensitivity (2.83V/1m) 87 dB
  • Mechanical Q-factor, Qms 3.55
  • Electrical Q-factor, Qes 0.33
  • Total Q-factor, Qts 0.30
  • Moving mass incl. air,Mms 6.8 g
  • Force factor, Bl 5.7 Tm
  • Equivalent volume, Vas 15.0 liters
  • Compliance, Cms 2.16 mm/N
  • Mechanical loss, Rms 0.5 kg/s
  • Rated power handling* 40 W

* IEC 268-5, T/S parameters measured on drive units that are broken in

Diameter
5"
Impedance
8 Ω
Power
40 W
Series
SATORI
Material
Aluminum
Egyptian Papyrus
