Pre-order product
€ 9,950.00
Tax included

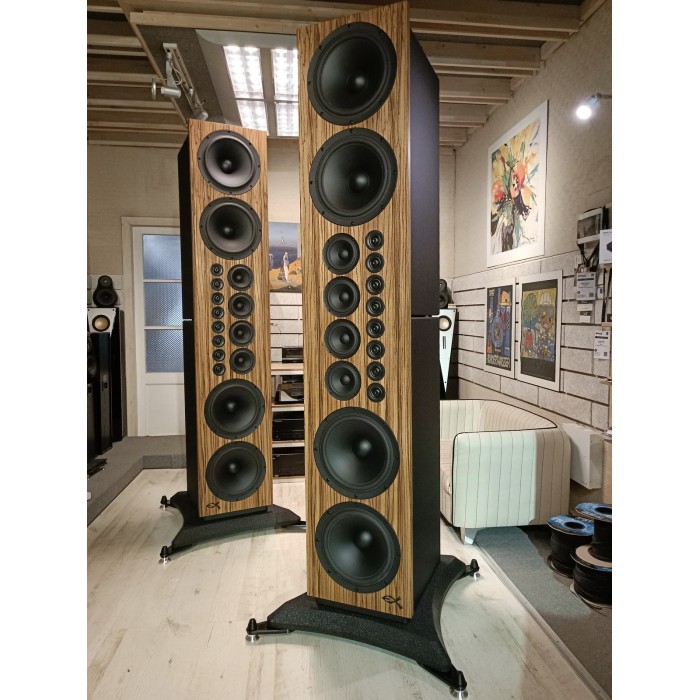

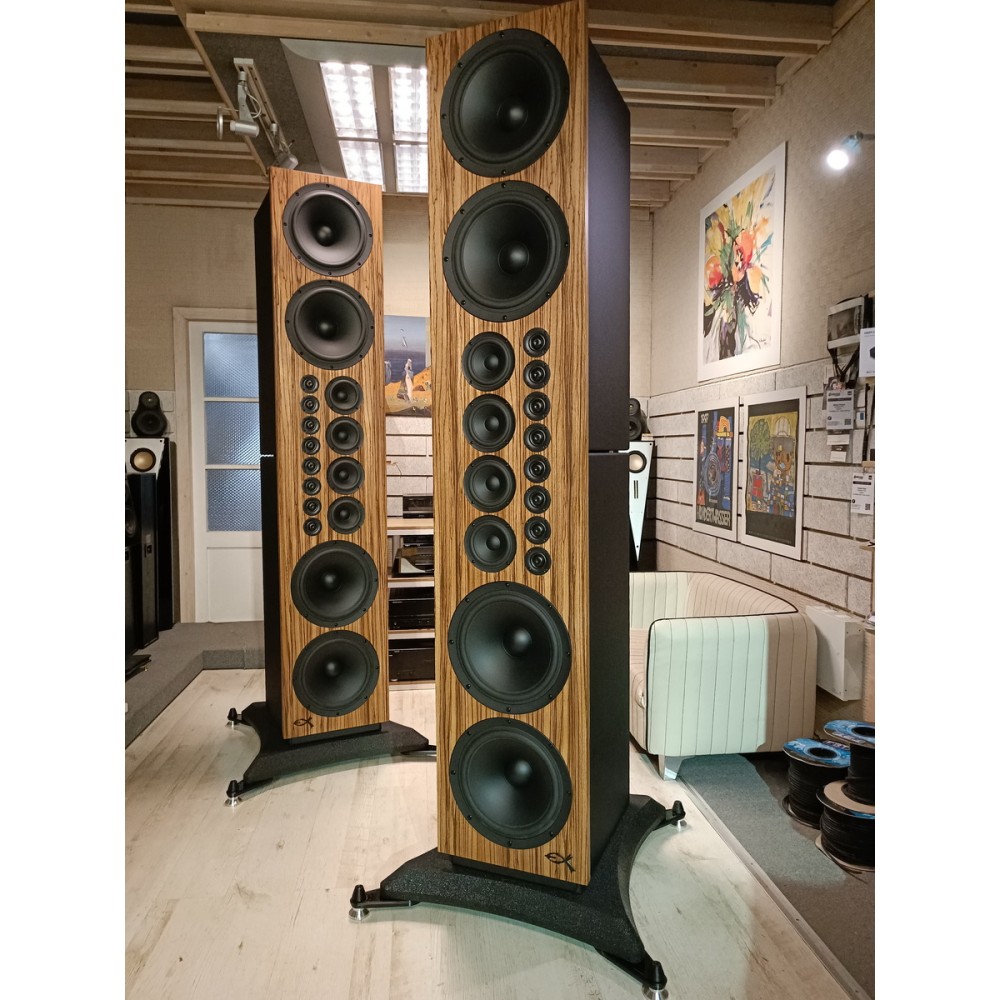

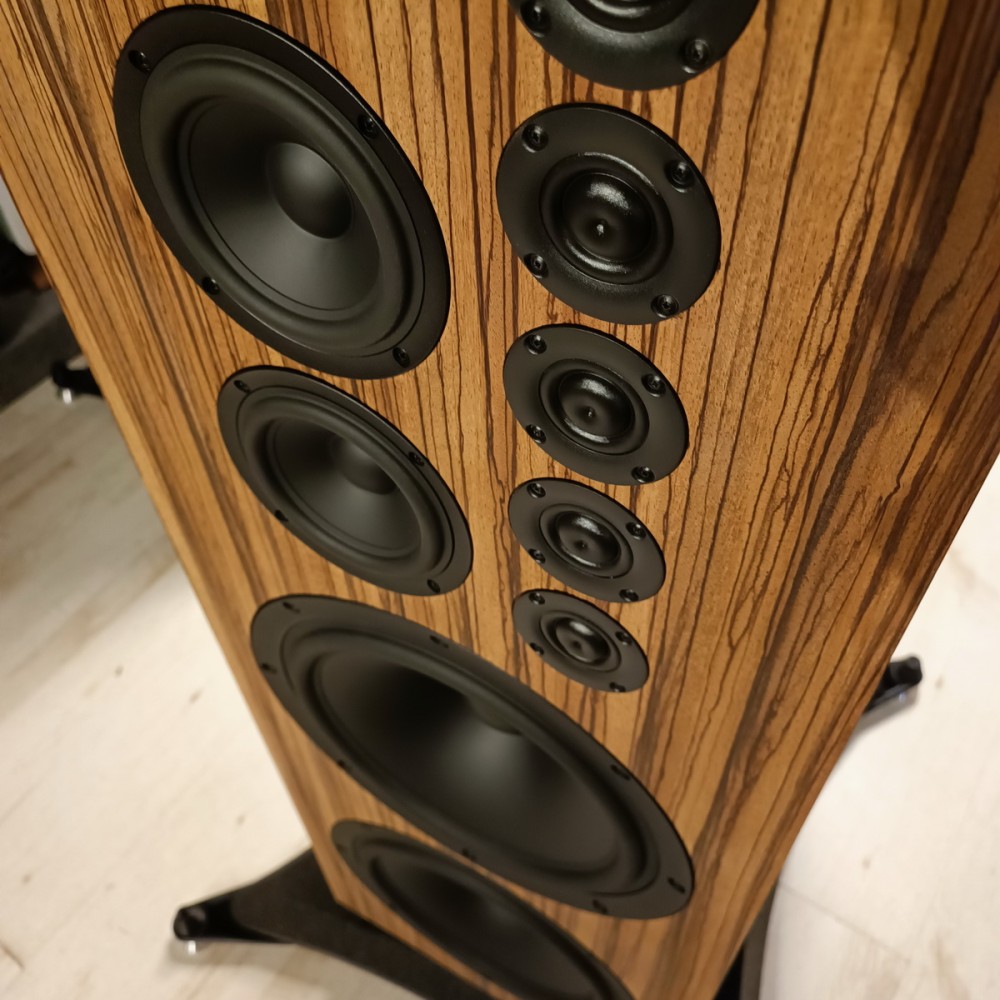

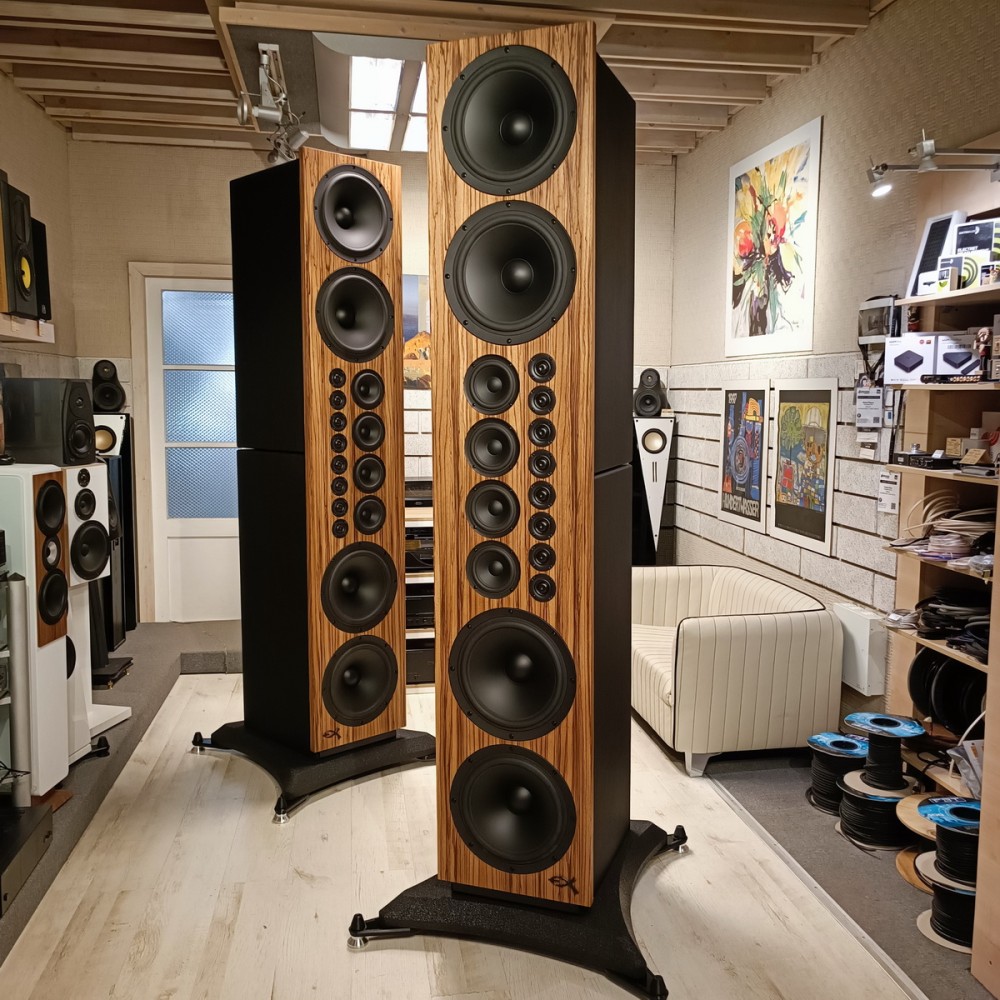

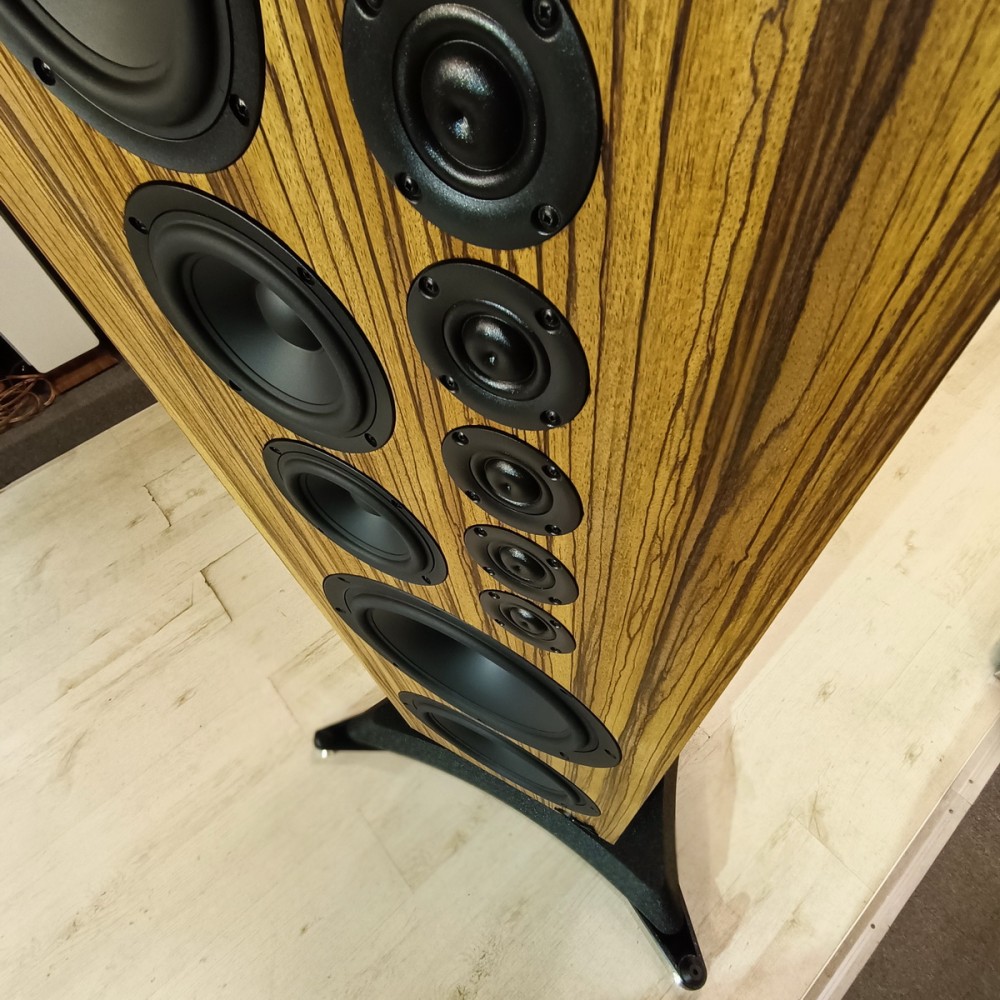

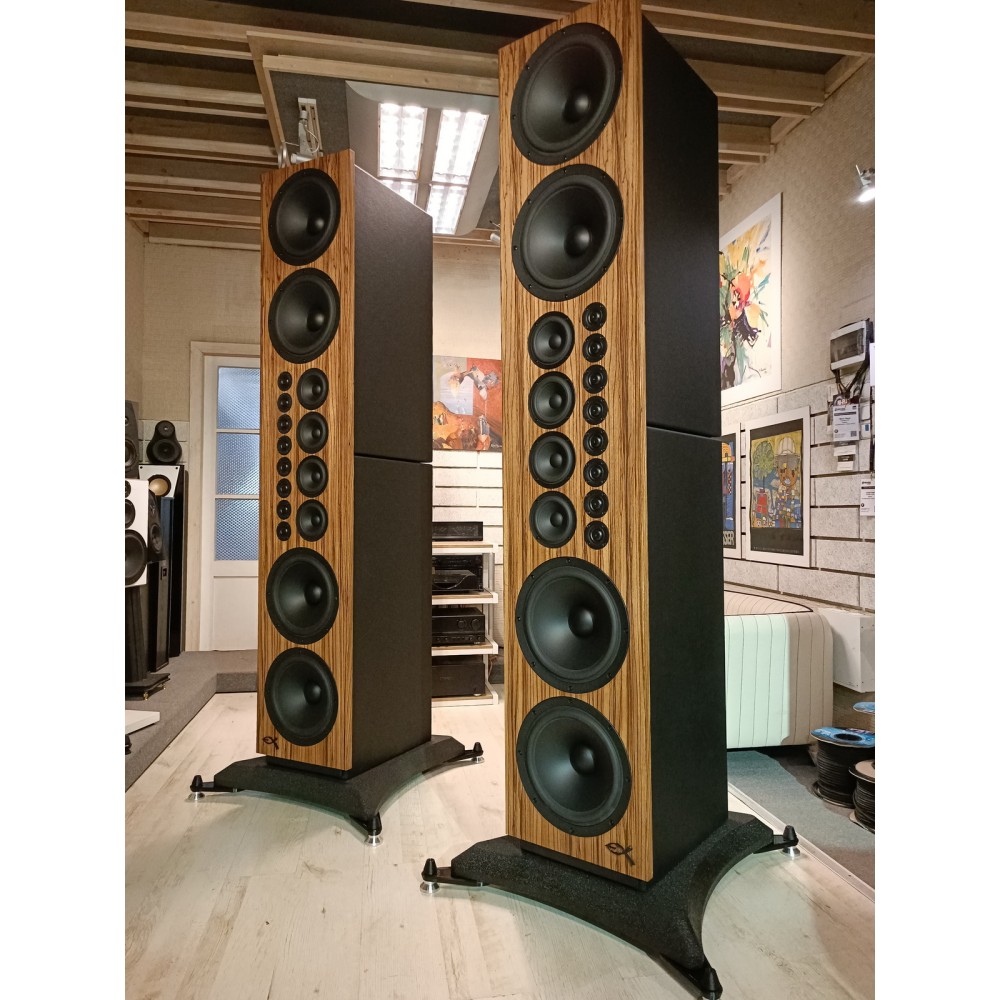

Three-way speakers designed for impressive sound and realism!

Technical specifications

  • Model- Exproject Concert Array
  • Development- Exproject
  • Configuration- passive, three-way.
  • Phase-reflex system- Bass reflex 4th order
  • Dispersion- a-symmetrical, strongly pronounced vertical directivity
  • Filter- acoustic and electric - 1 Row (6 dB/oct)

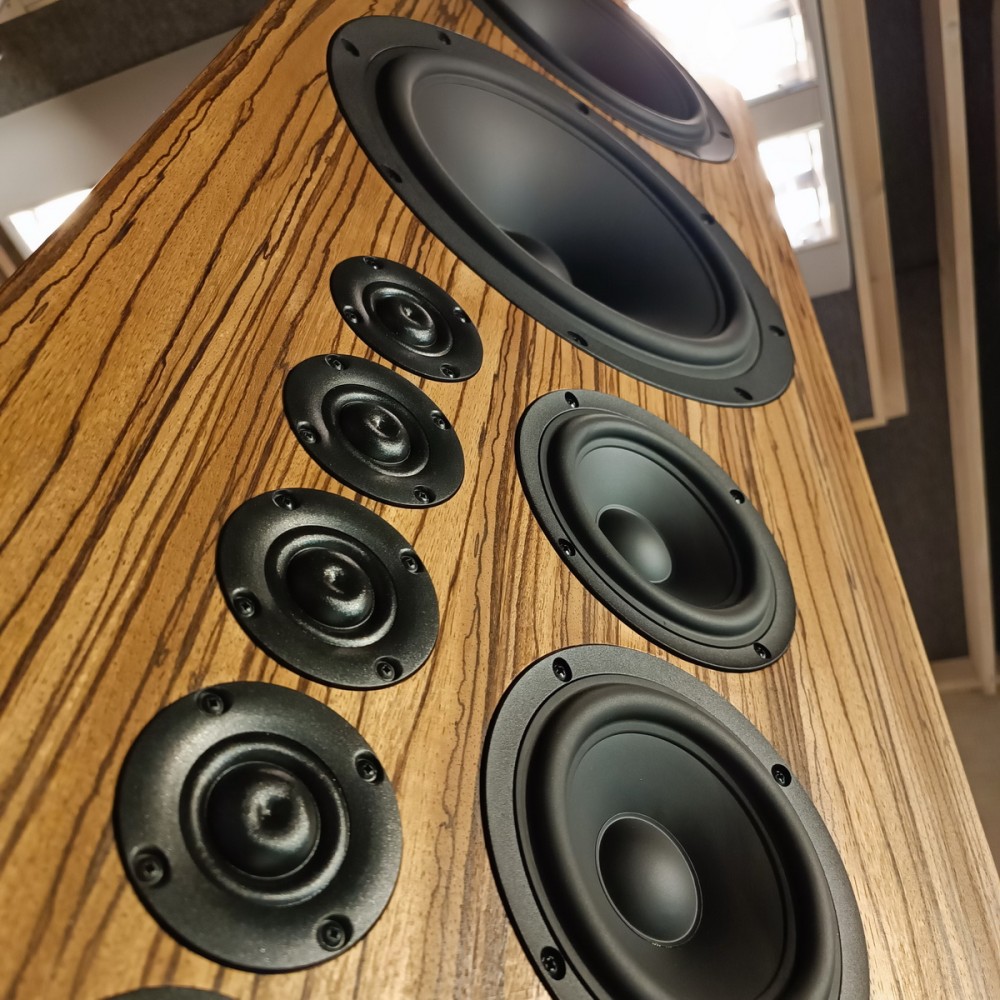

  • Speakers- SB Acoustics
  • Woofer- 4x12″ SB34NRX75-6 / Norex-paper
  • Midrange- 4x5″ SB15NRX2C30-8 / Norex-paper
  • Tweeter- 8x29mm SB29RDNC-C000-4 - textile, ring radiator.
  • Crossover filters - MUNDORF components
  • Crossover frequencies - 290/1800 Hz
  • Acoustic damping - corrugated foam and polyester wool
  • Impedance minimum - 6.1 Ohm (210 Hz)
  • Power - 500W/ 700W
  • Sensitivity - 94 dB
  • Frequency range - 27-20 000 Hz, -4 dB
  • Acoustic axis - opposite the center of the tweeters,
  • Minimum distance - rear wall / front panel of the column - 1.4 m.
  • Minimum distance listening position / columns - 3.3 m.
  • Finishing - artificial leather and natural veneer of choice
  • Dimensions without base H.W.D. 1950 x 360x 520 mm.
  • Dimensions of the base H.W.D. 150 x 760x 860 mm.
  • Dimensions - 2200 x 760 x 880 mm.
  • Weight - 190 kg (each)
(0)
4x12" | 6 Ω | 500 W

Brand


Diameter
4x12"
Impedance
6 Ω
Power
500 W
Series
CONCERT
NRX/Norex
Material
Leather
MDF
Veneer
Classification
Concert line
Floorstanding
High SPL
Home theater

Summary

0

(0 Reviews)

Select a row below to filter reviews.

  • 5
    (0)
  • 4
    (0)
  • 3
    (0)
  • 2
    (0)
  • 1
    (0)
You cannot post a review because you are not logged as a customer

Log in / sign up
Sort By

No customer reviews for the moment.

Components and accessories:

SB Acoustics SB29RDNC-C000-4 Ring Dome Tweeter-neodymium SB Acoustics SB29RDNC-C000-4 Ring Dome Tweeter-neodymium 2
In Stock
Миниатюрни говорители

SB Acoustics SB29RDNC-C000-4 Ring Dome Tweeter-neodymium

PROD206
0 Review(s)
10 pcs.
€ 59.82
Features Non-resonant diaphragm design for minimum high frequency break-up CCAW voice coil for low moving mass Long life silver lead wires Low resonance frequency Copper cap on pole piece for reduced voice coil inductance and minimum phase shift Inherently shielded neodymium motor system Internal pressure equalization and flow resistor for non-resonant...
Exproject Port 103 rounded two-piece bass reflex Exproject Port 103 rounded two-piece bass reflex 2
100мм | PETG
Bassreflex Ports

Exproject Port 103 rounded two-piece bass reflex

1 Review(s)
-5 pcs.
€ 31.95
Bass reflex port with rounded inlet and outlet consisting of 2 parts. For the depth of the reflex, the use of the standard PVC pipe F-110-gray (KDN) is provided, which can be purchased by the customer or can be ordered from us in the selected length (port depth). The quality of the product allows the use in higher class applications.
SB Acoustics SB34NRX75-6 / Norex 12″ SB Acoustics SB34NRX75-6 / Norex 12″ 2
12" | 6 Ω | 200 W
In Stock
Bass / Mid-Bass

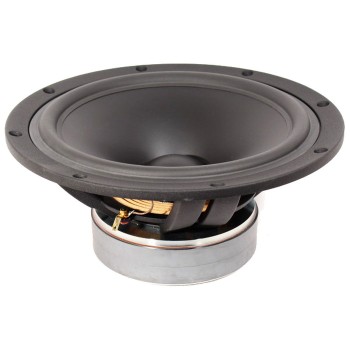

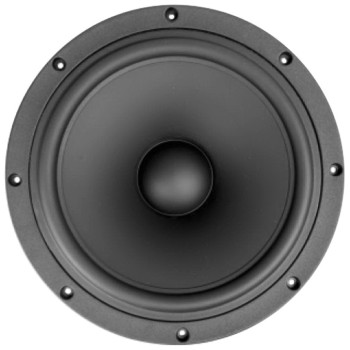

SB Acoustics SB34NRX75-6 / Norex 12″

IMPORTED_SB_ACOUSTIC_37
1 Review(s)
2 pcs.
€ 199.00
High flow venting center pole 3″ voice coil Low dampening surround Non-inductive voice coil former Proprietary cone materials made-in-house Cast Aluminium chassis
SB Acoustics SB15NRX2C30-8 / Norex 5" Woofer paper cone SB Acoustics SB15NRX2C30-8 / Norex 5" Woofer paper cone 2
5" | 8 Ω | 50 W
In Stock
Bass / Mid-Bass

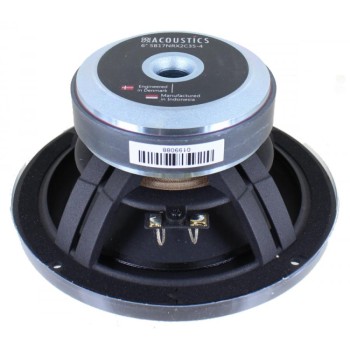

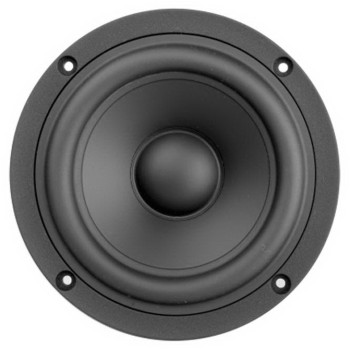

SB Acoustics SB15NRX2C30-8 / Norex 5" Woofer paper cone

IMPORTED_SB_ACOUSTIC_179
0 Review(s)
7 pcs.
€ 64.42
Vented cast aluminum chassis for optimum strength and low compression Proprietary cone material with natural fibers made in-house Soft low damping rubber surround for improved transient response Non-conducting fiber glass voice coil former for minimum damping Extended copper sleeve on pole piece for low inductance and low distortion CCAW voice coil for...
