SB Acoustics Rima DIY Speaker Component Kit

SB Acoustics Rima DIY Speaker Full Component Kit

Name: SB Acoustics Rima DIY Speaker Full Component Kit
Brand: SB Acoustics
SKU: 1969
Price: 1699 EUR
Availability: PreOrder

Pre-order product

€ 1,699.00

Tax included

Specs

Frequency Range: 33 – 24000 Hz
Sensitivity (2.83V / 1m): 84 dB
Nominal Impedance: 8 Ω
Max SPL: 105dB
Recommended Amplifier: 100 – 200 W
Crossover Frequency: 500 Hz & 3000 Hz
Enclosure Type: Bass reflex 41.6L (Woofer) / sealed 3L (Midrange)
Port tuning Frequency: 30 Hz
Drive Units: SB26STAC-C000-4, 4″ SB12NRX25-8 & 10″ SB29NRX75-8
Cabinet material: 15 mm & 18 mm Birch Plywood
Speaker Dimension: 610 x 363 x 305 mm (24 x 14.3 x 12 inches)
Net weight (Pc): 21.8 kg (full assembly)

(0)

10" | 8 Ω | 150

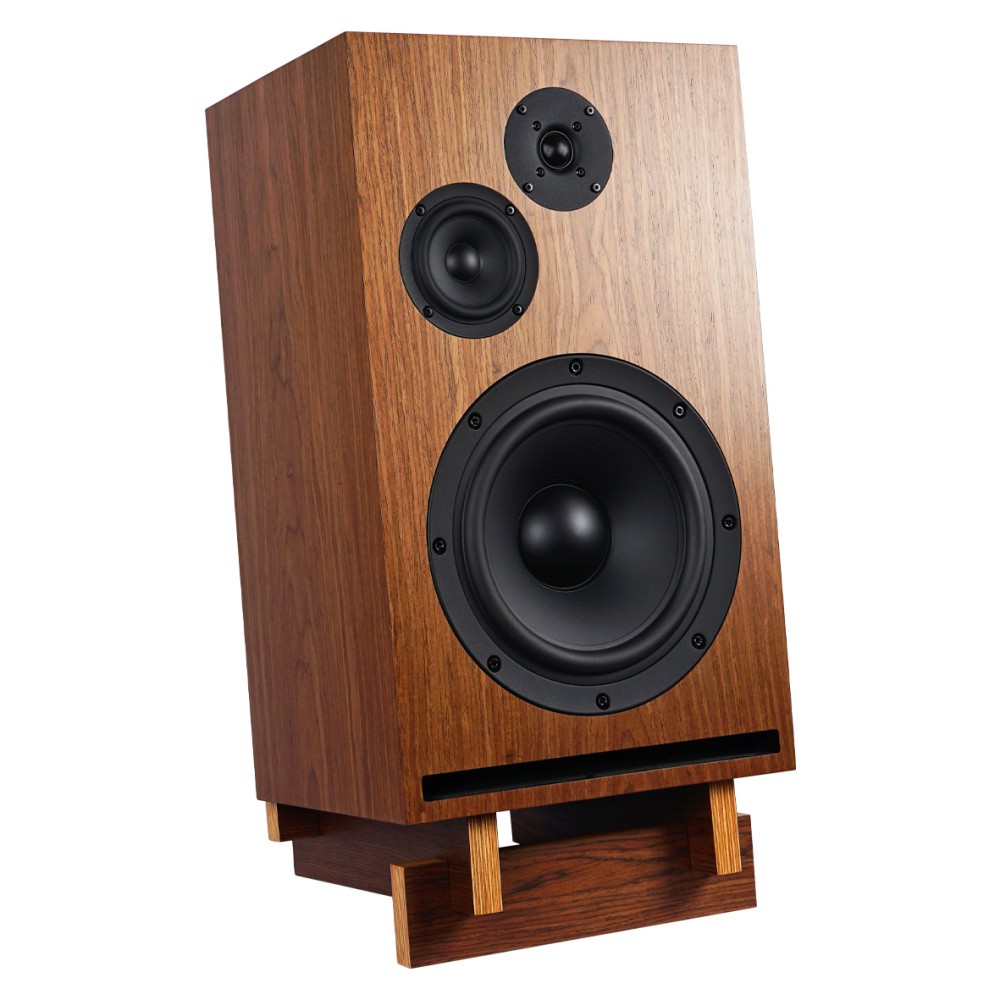

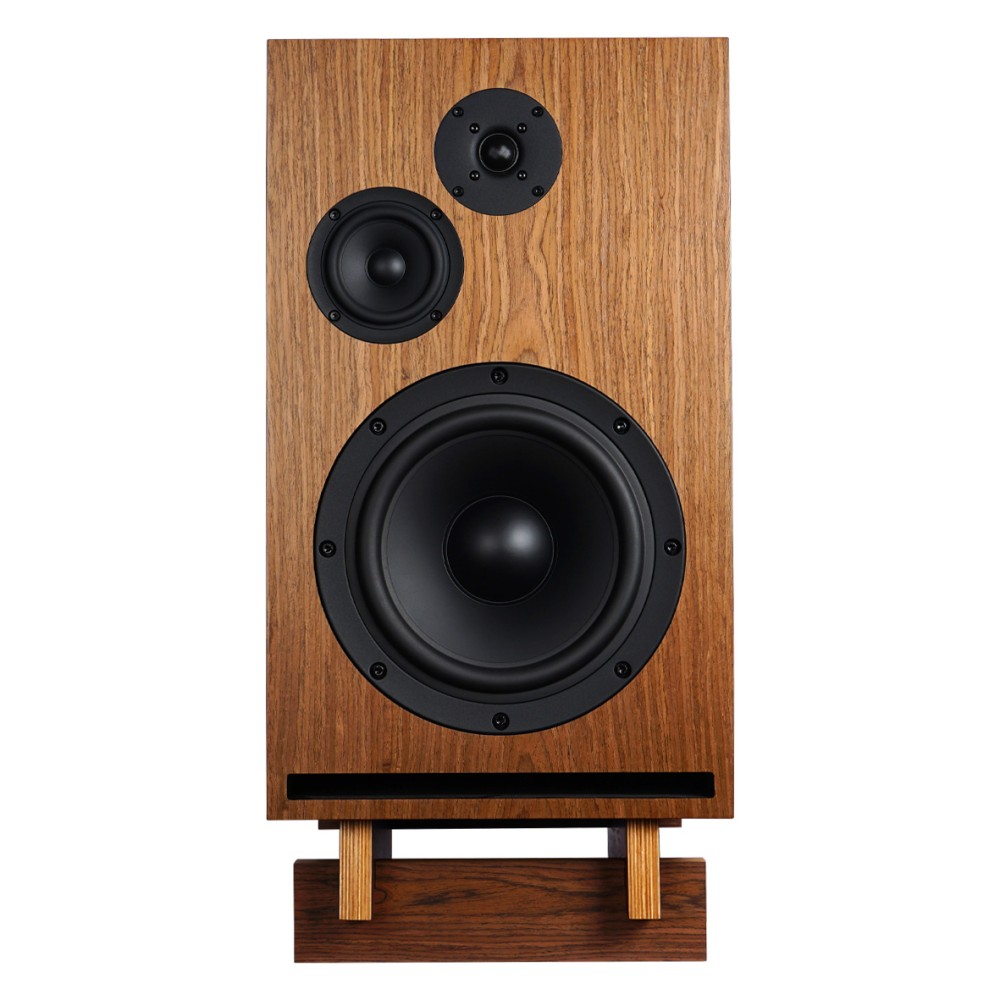

Rima is the more compact sibling to the Gema — a 3‑way loudspeaker that carries the same 1970's design cues and acoustic philosophy in a smaller, more versatile enclosure. Classic hi-fi of that era celebrated generous proportions and large bass drivers, and while Rima embraces that heritage, it delivers the same musical charm in a footprint suited to modern living spaces.

Bass duties are handled by the 10 inch SB29NRX75-8, a driver chosen for its excellent linearity, low distortion and ability to produce a surprisingly deep, controlled and tuneful low end, providing the familiar warmth and weight of vintage loudspeakers, just scaled to a more compact form.

The midrange is covered from 500Hz up to 3kHz by the 4 inch SB12NRX25-8, a paper-cone unit known for its smooth response, low moving mass and natural tonal character. This driver brings clarity and openness to vocals and instruments, maintaining the articulate midband performance that defines the family.

To match the midrange's clean presentation, the top end is handed over to the SB26STAC-C000‑4 soft dome tweeter. With its die-cast aluminum faceplate, optimized rear chamber and full copper cap, it delivers a refined, extended treble that integrates seamlessly with the midrange for a cohesive, balanced sound.

The cabinet follows the same construction principles as the Gema: a well‑braced structure with a front‑firing slot port tuned to 30Hz, and a dedicated sealed 3L midrange. The enclosure combines 15mm and 18mm birch plywood, chosen for stiffness, stability and a clean, resonant‑free presentation.

A good starting point for placement is 2–3.5m between speakers, with moderate clearance to side and rear walls. A stand or plinth elevating the speaker 20–25cm from the floor, a 5–6 degree backward tilt and a slight toe‑in will typically yield the most coherent imaging. As always, room acoustics vary — experiment with orientation to suit your taste and listening space.

Rima brings the spirit of classic hi‑fi into a smaller, more flexible package. It's the ideal choice for listeners who appreciate the Gema's retro aesthetic and acoustic character but prefer a speaker that fits comfortably into a wider range of rooms.

Diameter: 10"
Impedance: 8 Ω
Power: 150
Series: NRX/Norex
Material: Veneer
Classification: Floorstanding
