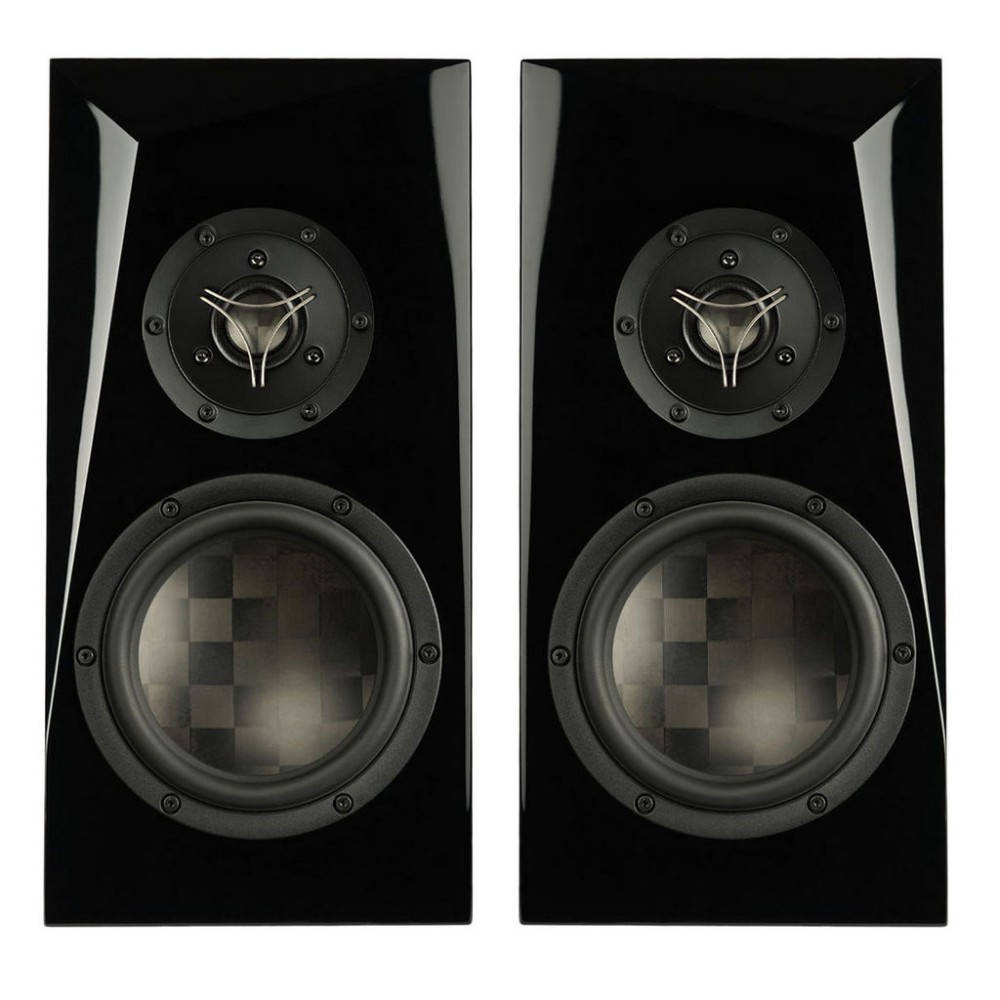

SB Acoustics Ara TX 2 way full speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way full speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way full speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way full speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit
SB Acoustics Ara TX 2 way speaker kit

SB Acoustics Ara TX 2 way full speaker kit

IMPORTED_SB_ACOUSTIC_227
1 pcs.
In Stock
€ 1,970.00
Tax included

Open Source speaker kit- SB Acoustics Ara TX

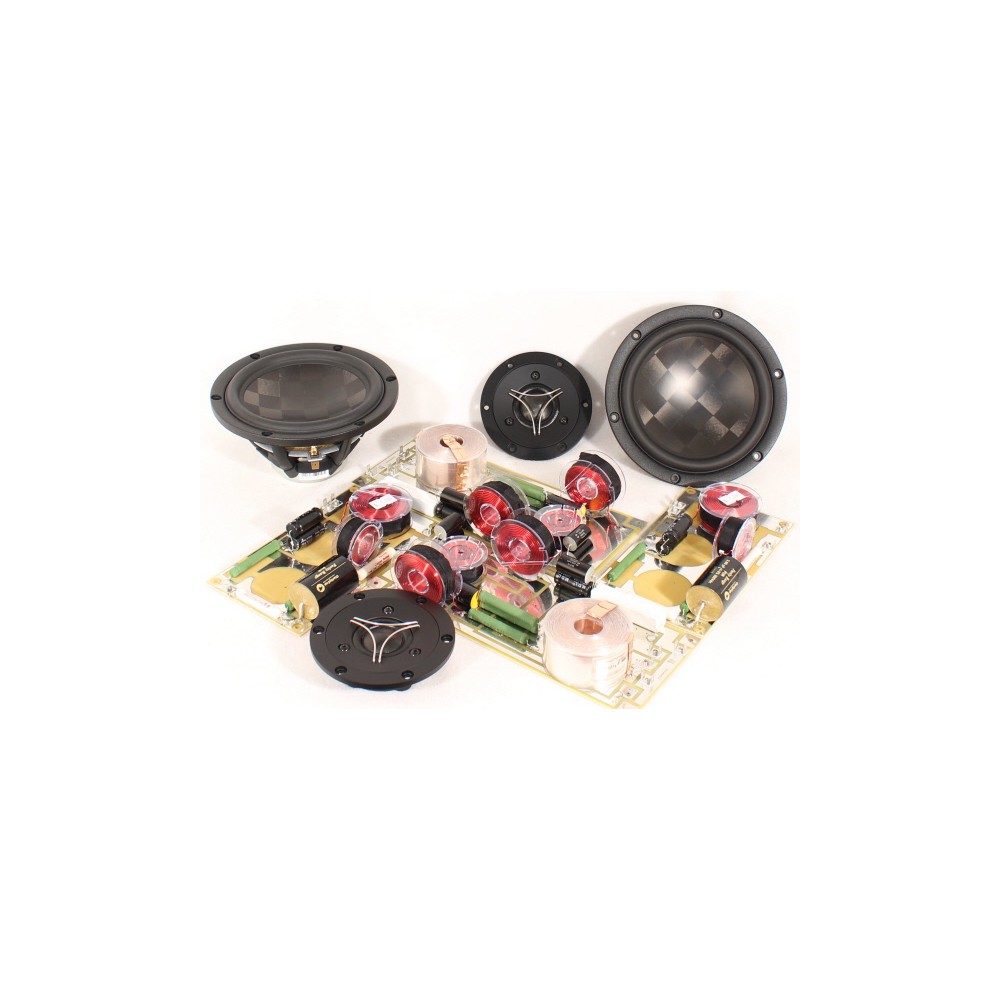

The set includes:

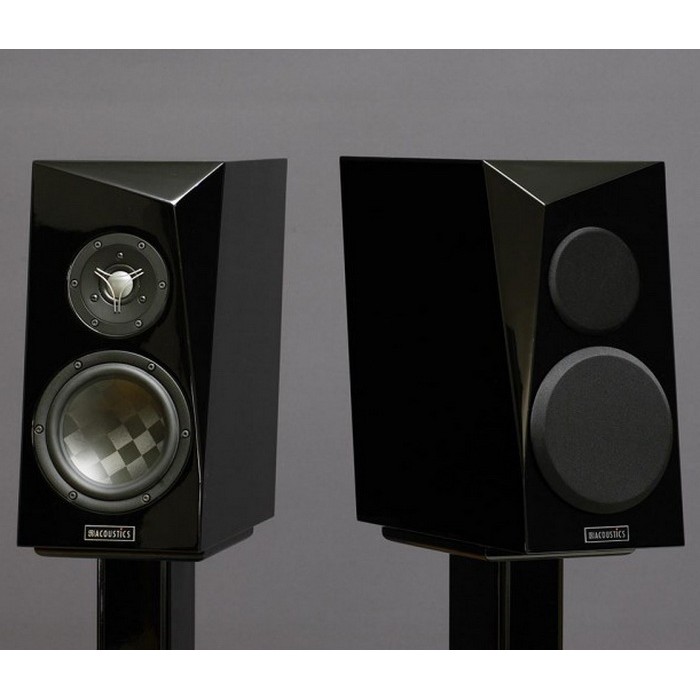

  • Speakers (2 pcs), magnetic grills (2 pcs), boxes with finish paint - 2 pcs.
  • The set also includes complete hardware necessary for the easy and quick finalization of the speakers;
  • - wadding, screws, input terminals, gaskets, logo and manual.

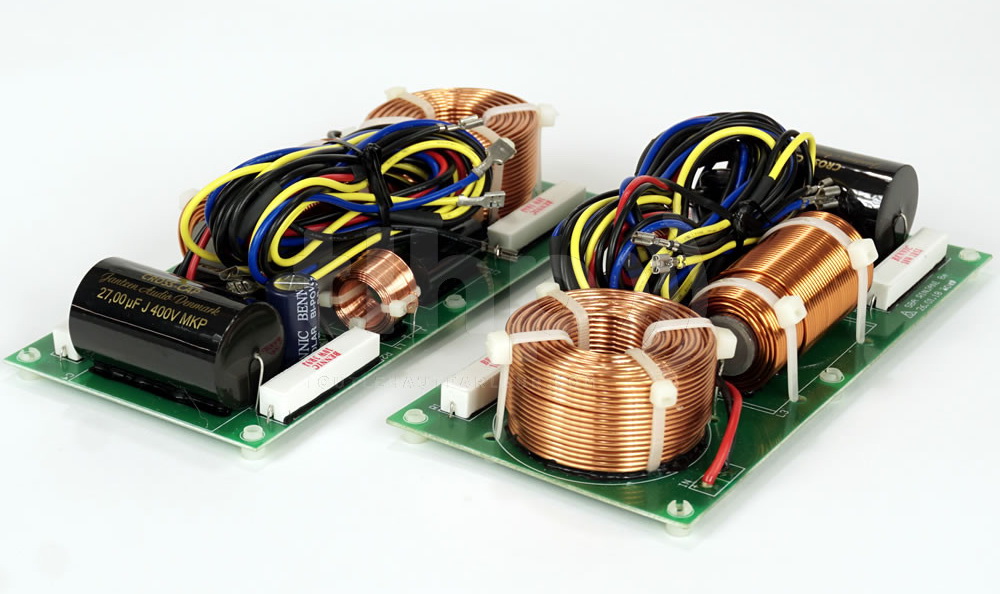

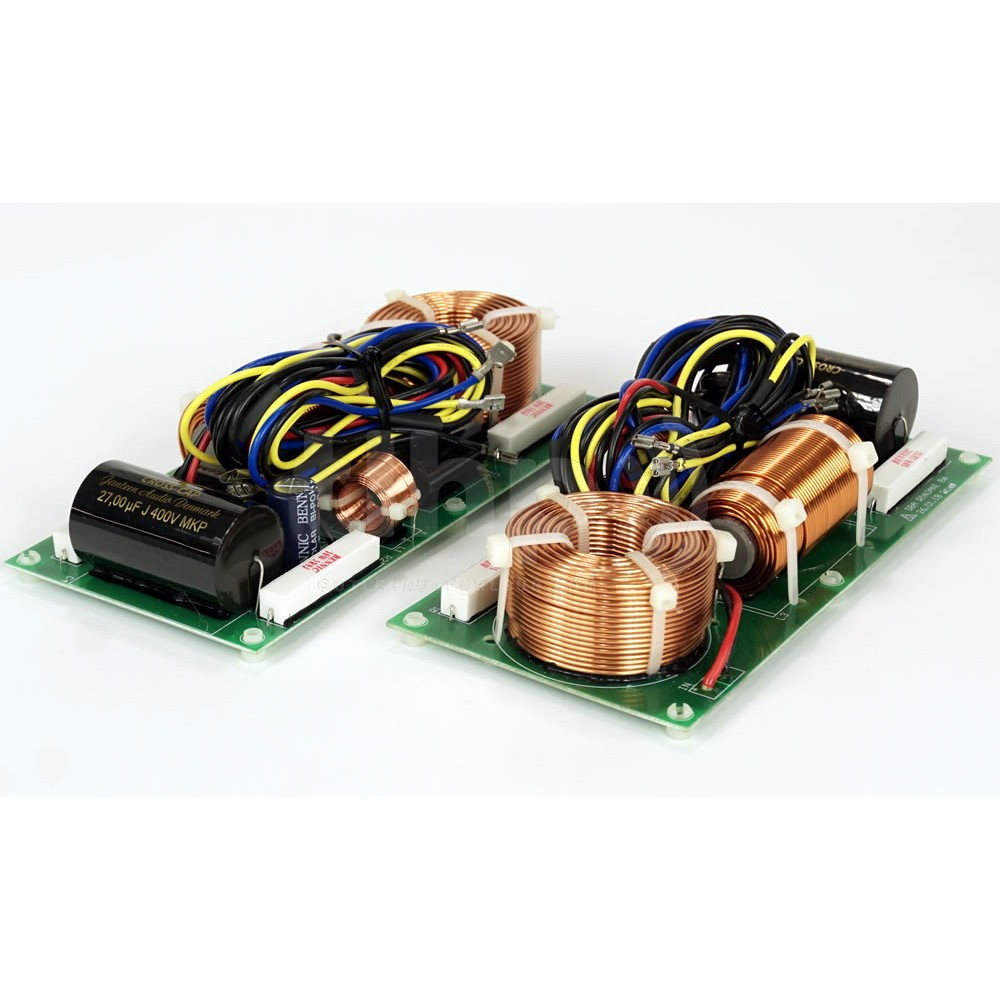

  • Separating crossovers are included.

The model comes with a choice of cabinet color, crossover components, internal wiring, which are also not included in the calculated amount.

  • Frequency Range: 45 – 32000 Hz
  • Sensitivity ( 2.83V / 1m ): 87 dB
  • Nominal Impedance: 4Ω
  • Max SPL: 105 dB
  • Recommended Amplifier: 40 – 150 W
  • Crossover Frequency: 2500 Hz

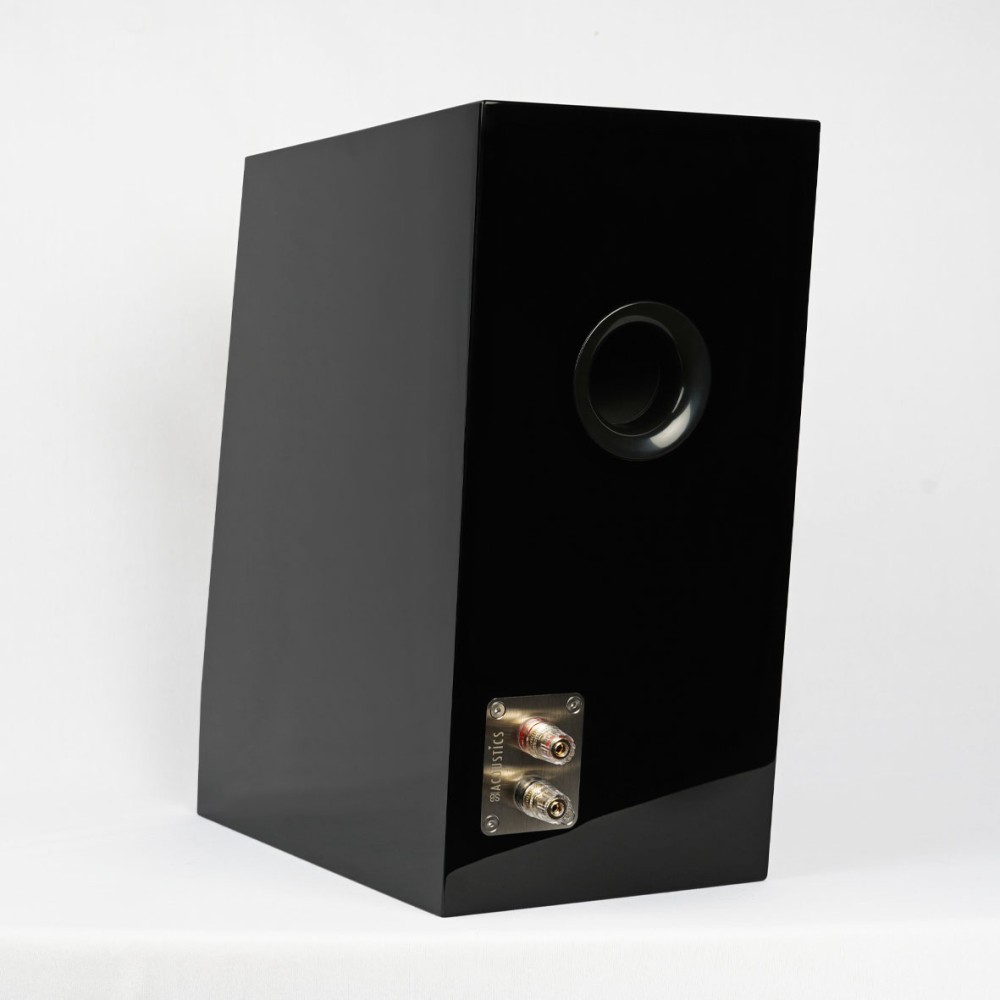

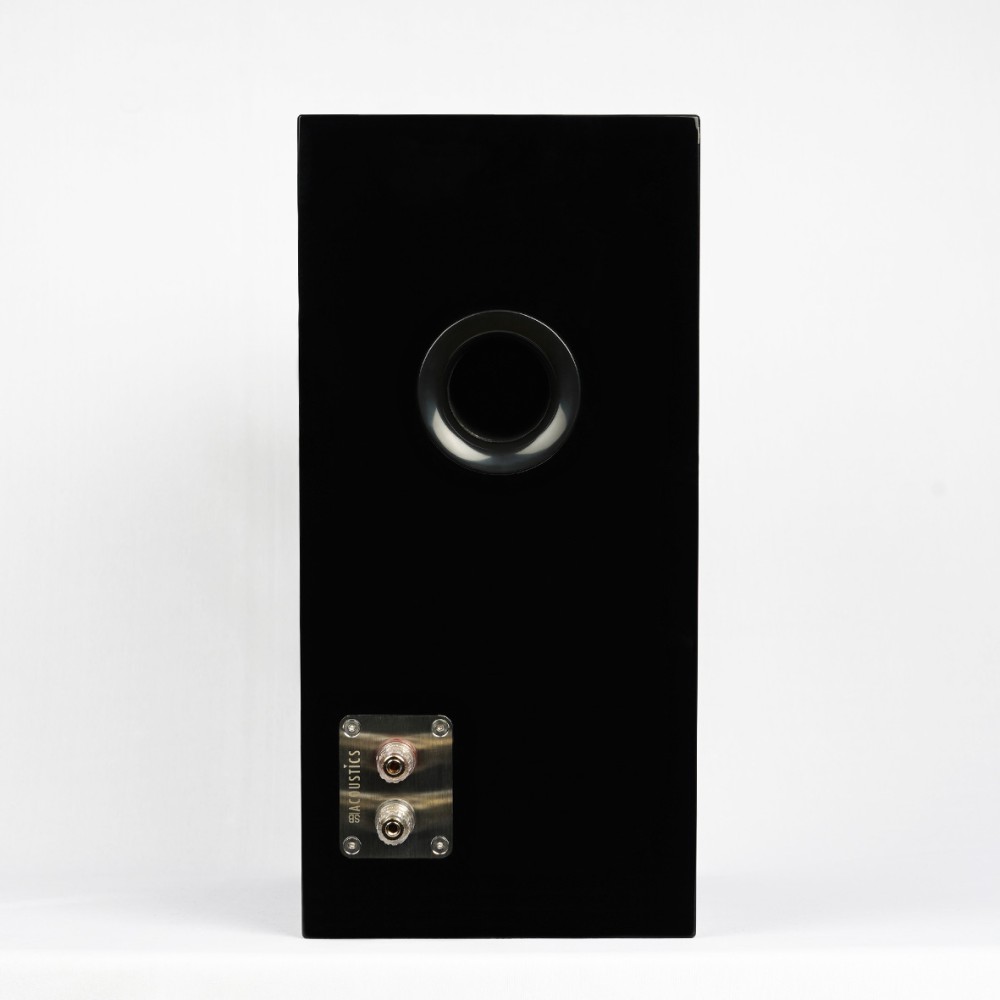

  • Enclosure Type: Bass reflex
  • Port tuning Frequency: 36.5 Hz

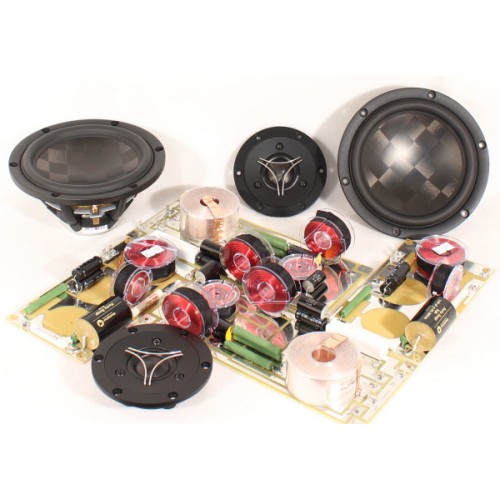

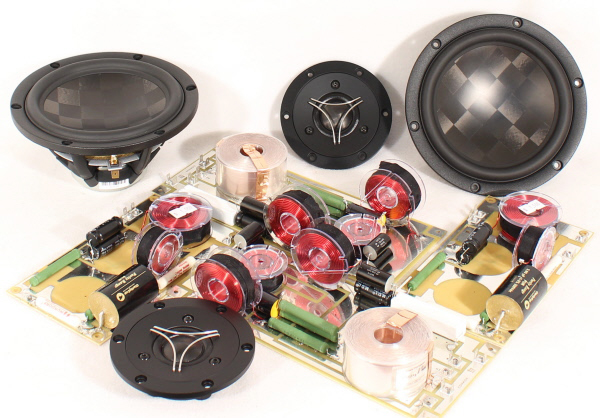

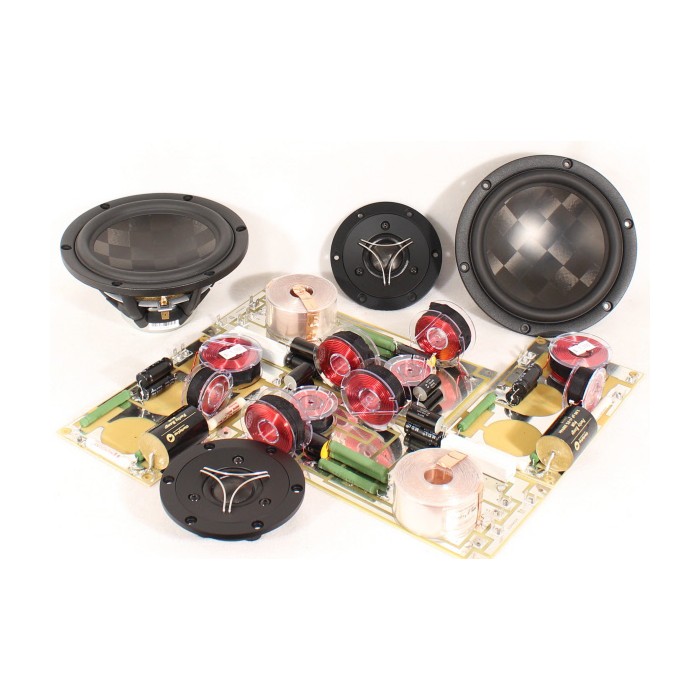

  • Drives Units: SATORI TW29TXN-B-8 & 6.5inch SATORI MW16TX-4
(0)
6" | 4 Ω | 70 W

Brand



Note: The set includes: 2 boxes with finish paint, speakers (4 pcs), grills (4 pcs).

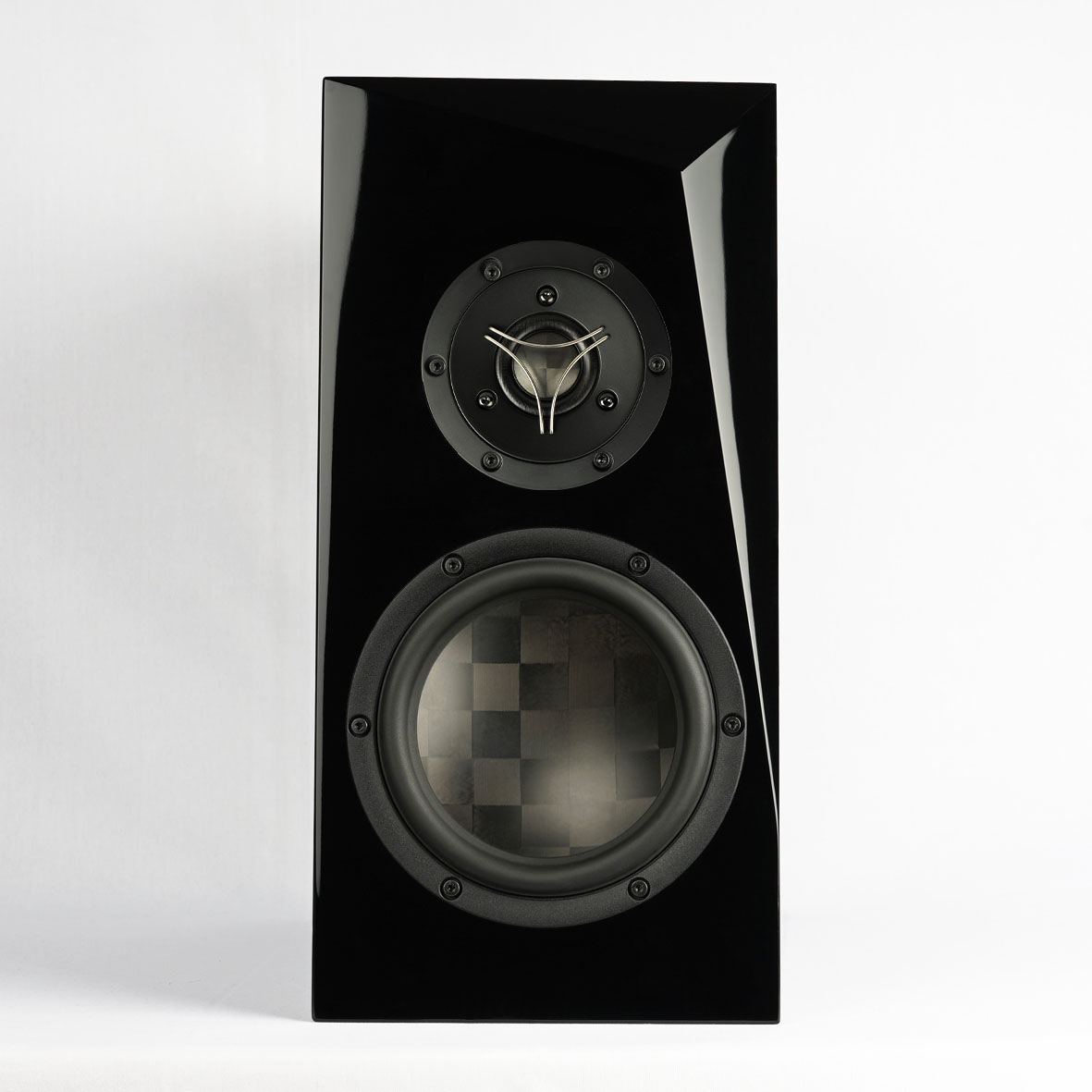

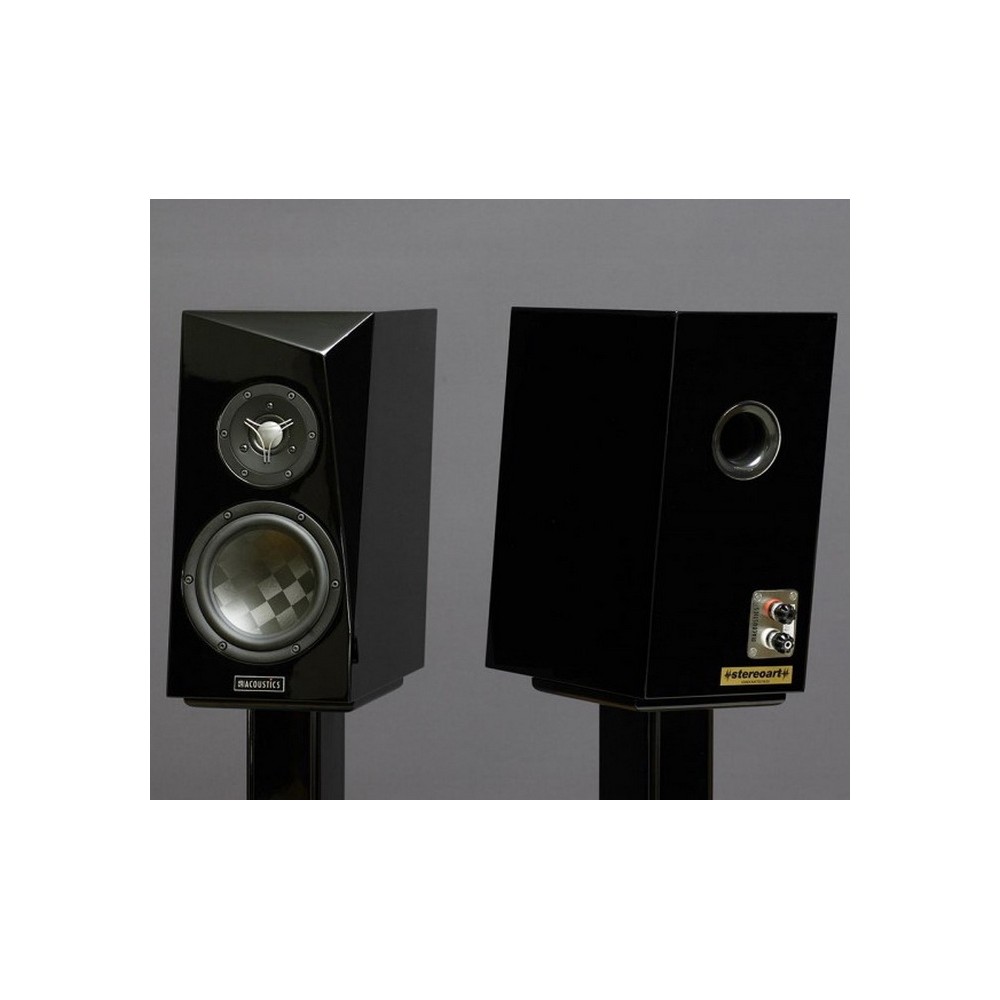

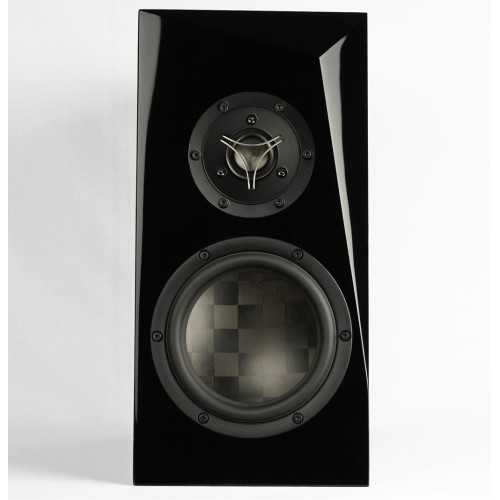

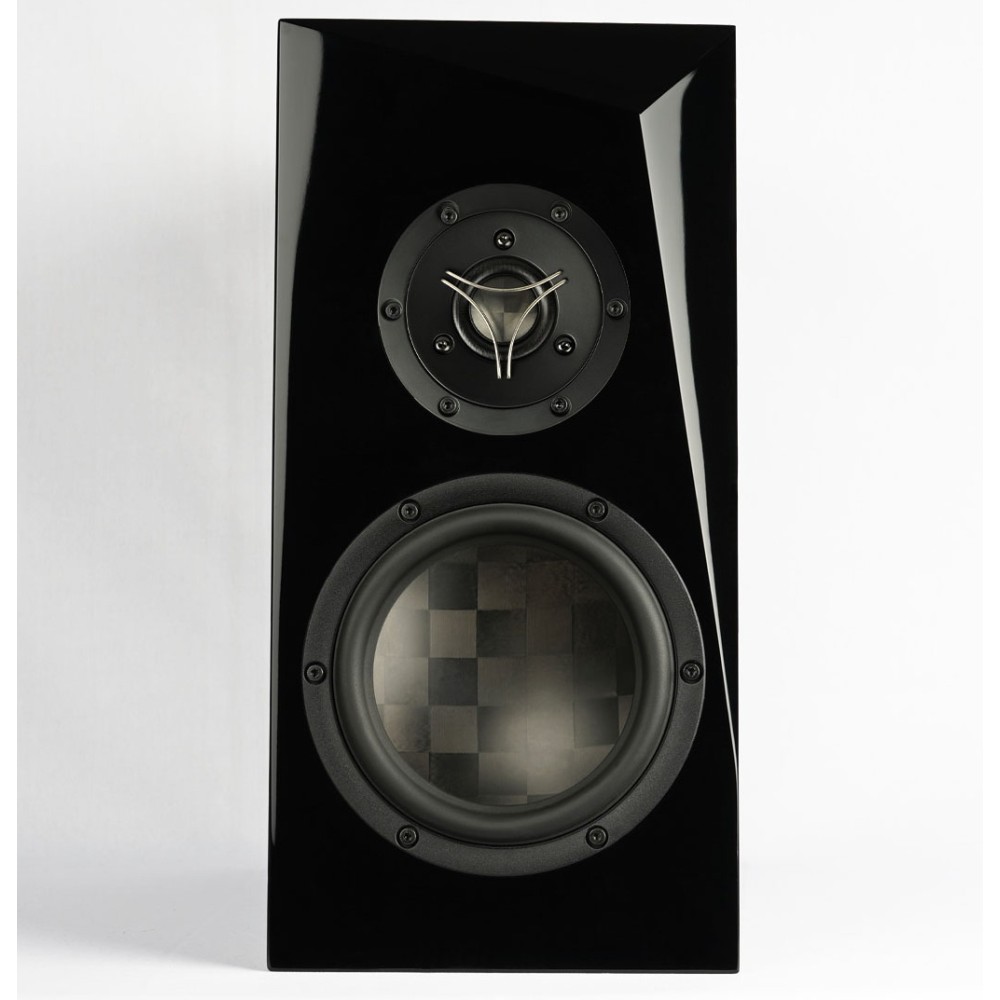

The ARA TX features the top of the line TeXtreme® midwoofer SATORI MW16TX-4 and pairs it with the TeXtreme® tweeter SATORI TW29TXN-8 for a visually and acoustically stunning match.

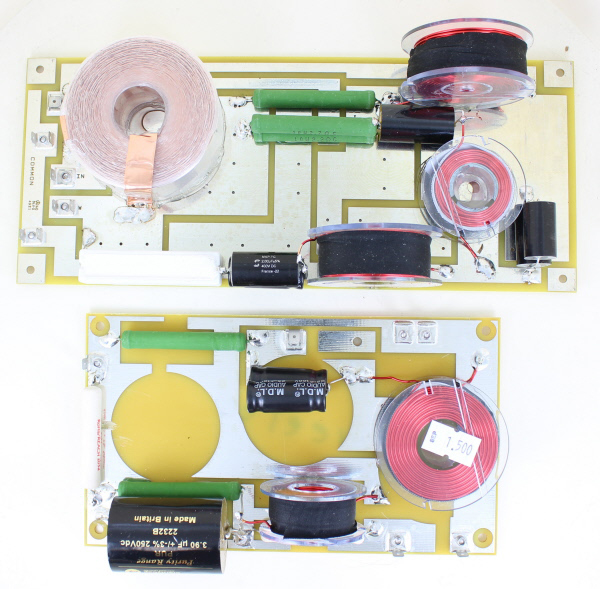

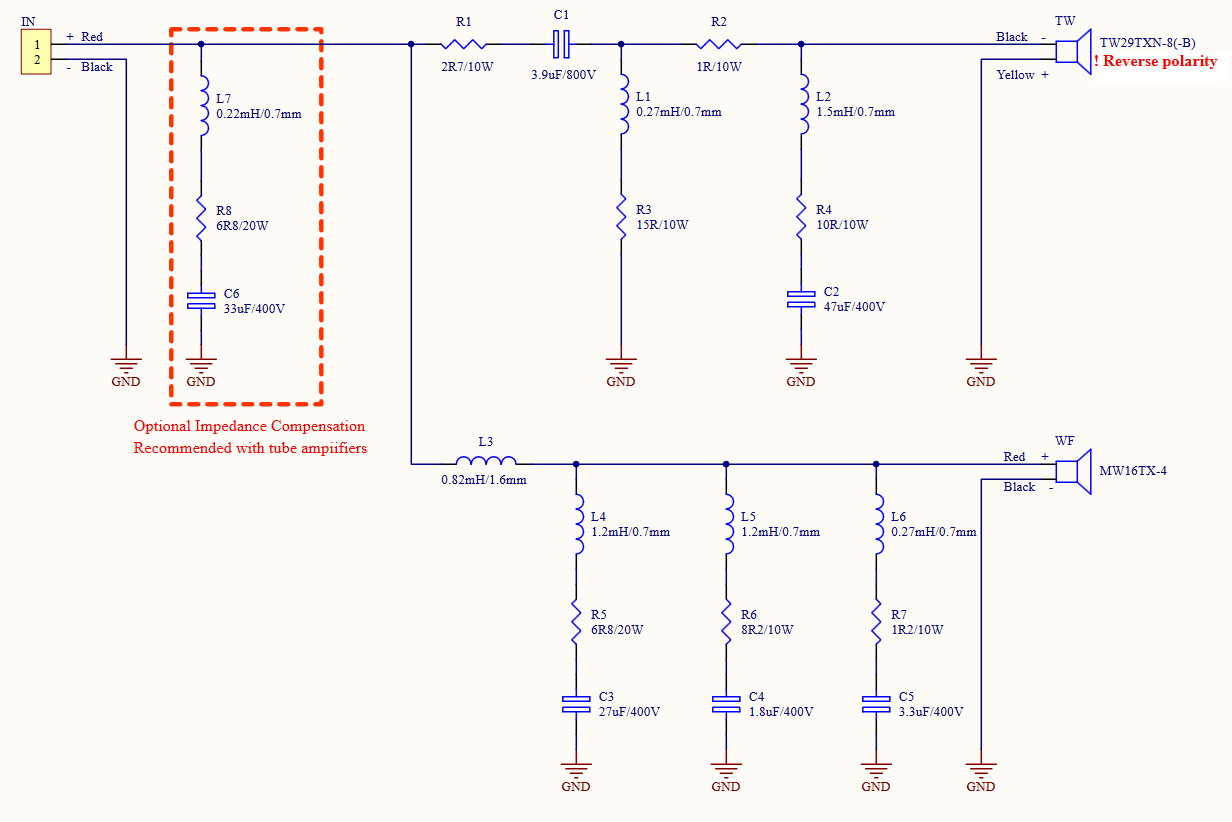

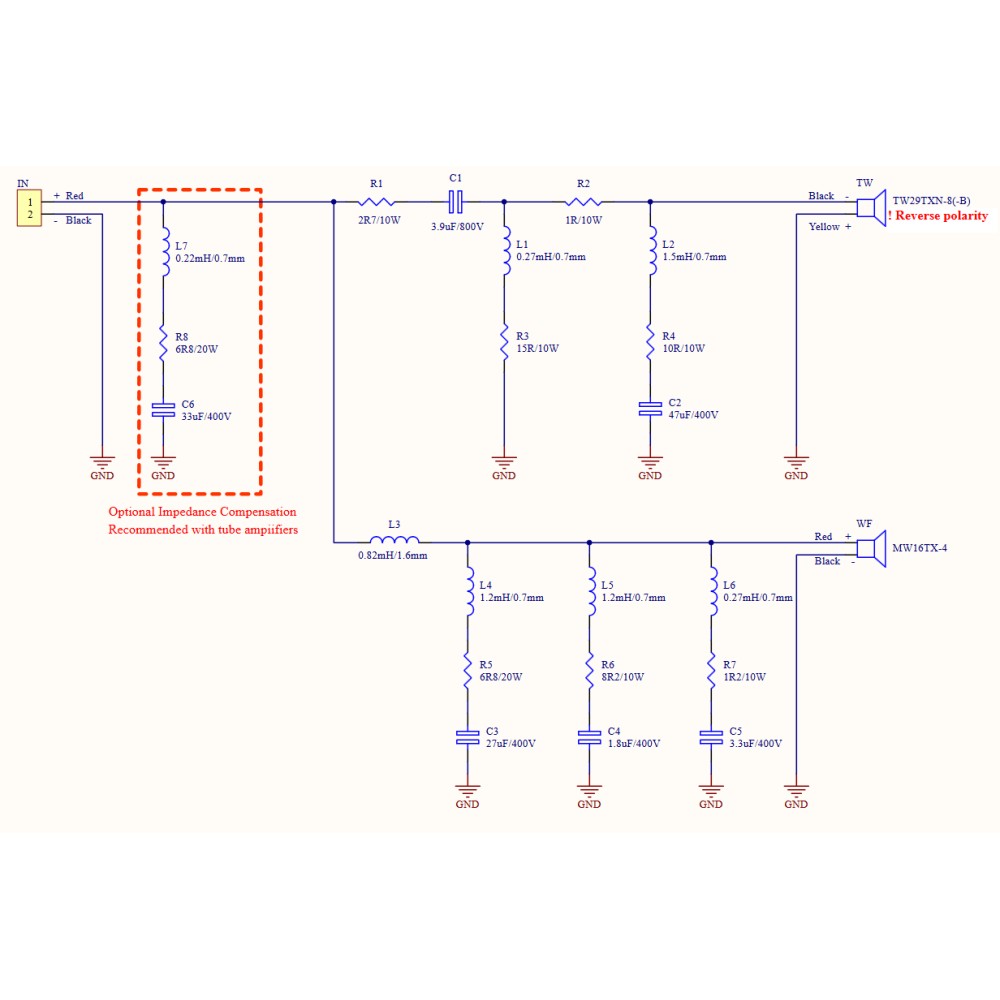

Compared to the ARA and ARA Be the crossover topology is realised differently on the ARA TX. In the low frequency section there is only one single component directly in series with the signal path to the 6½” SATORI MW16TX-4. This series inductor is followed by a number of parallel LCR-networks to further shape the response and for break up control as well as perfect integration to the 29mm Textreme® tweeter and optimised tweeter network.

The result is very open and transparent sound that is both natural and very relaxed. The bass is deep and very convincing for a stand mount speaker.

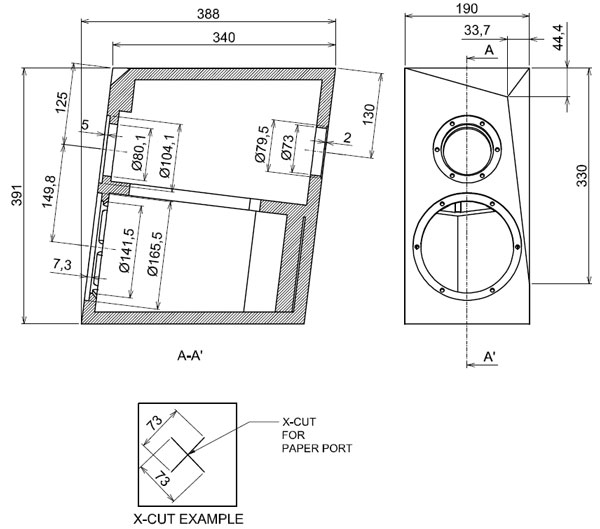

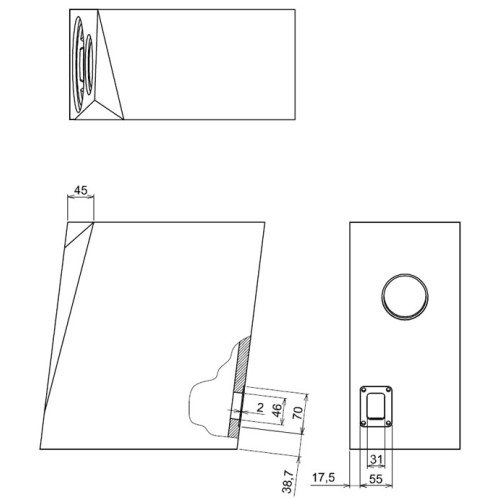

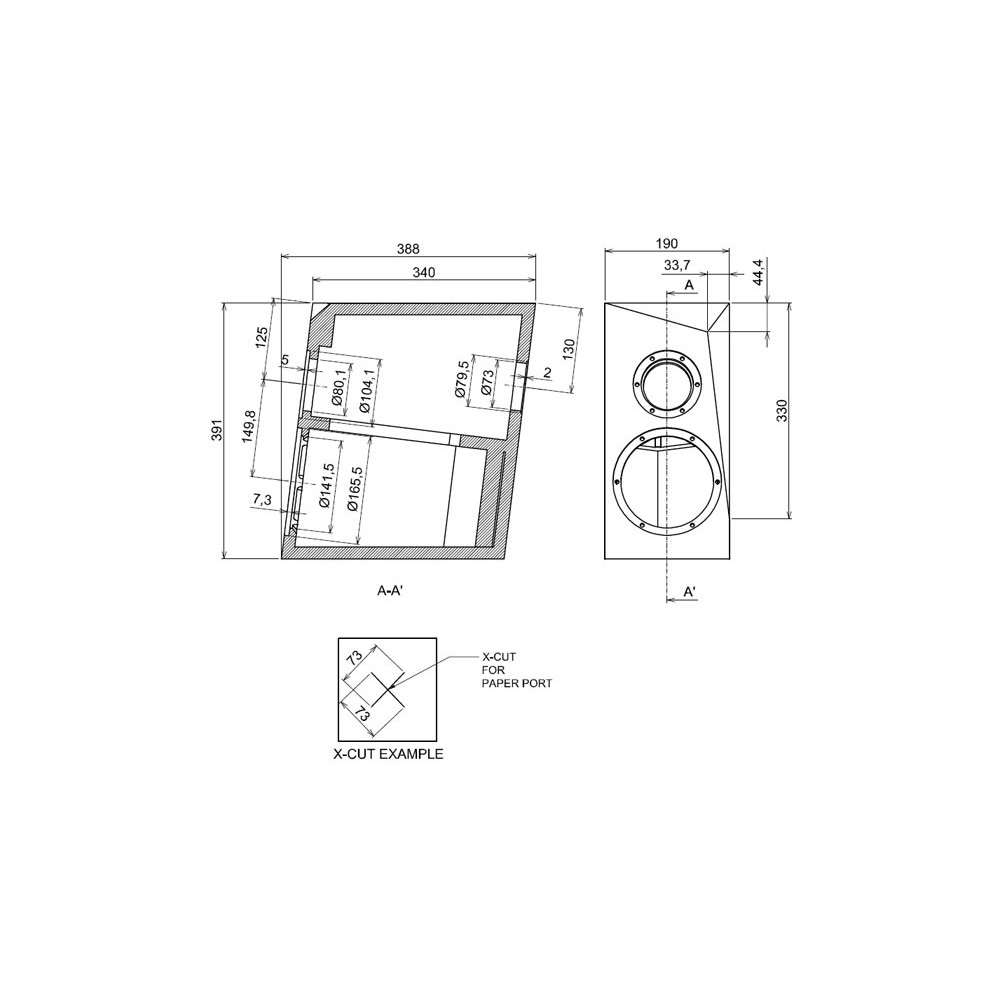

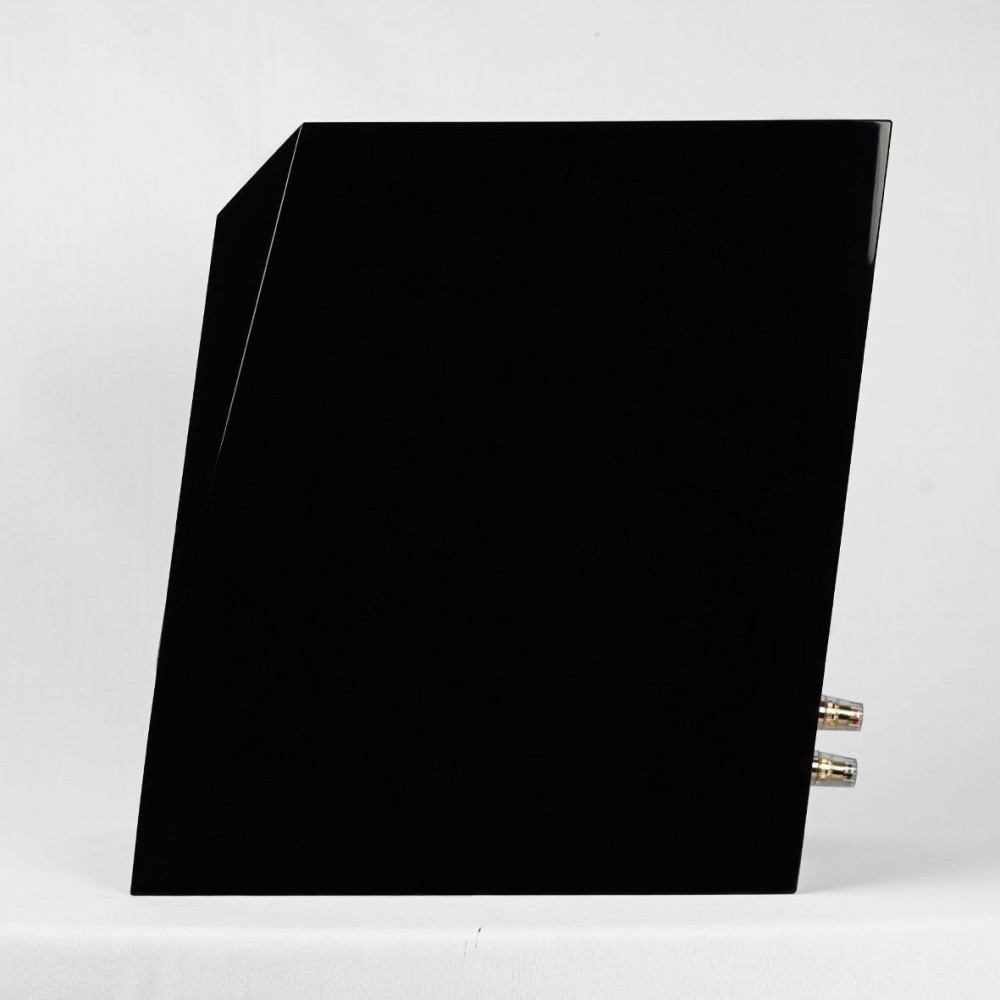

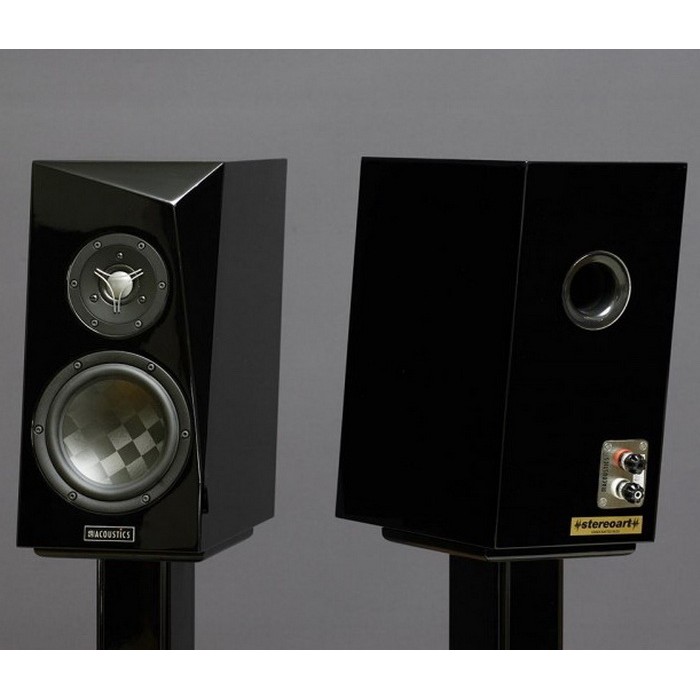

The ARA’s faceted baffle is specially designed to reduce high frequency diffraction and yields superb imaging qualities. The 7° reclined cabinet ensures good time alignment resulting in sublime staging and pin point placement of instruments.

 Open Source Kit

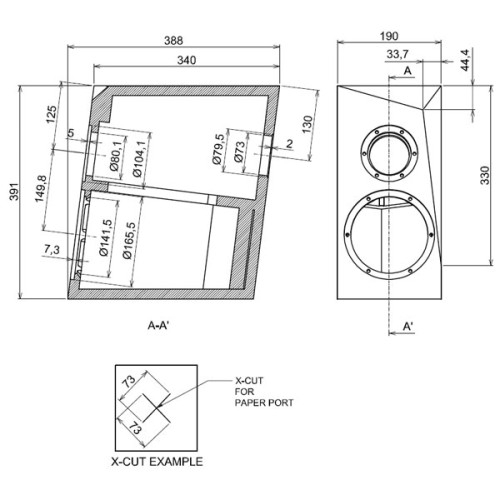

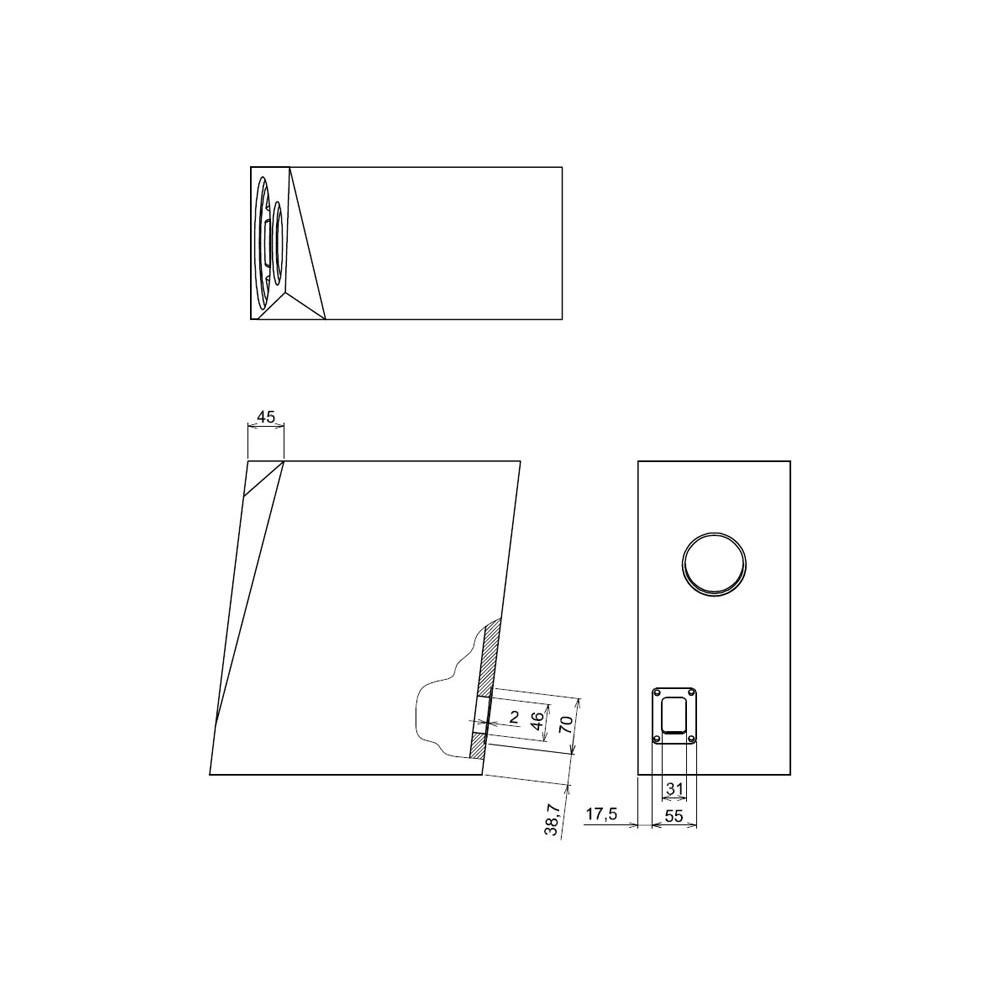

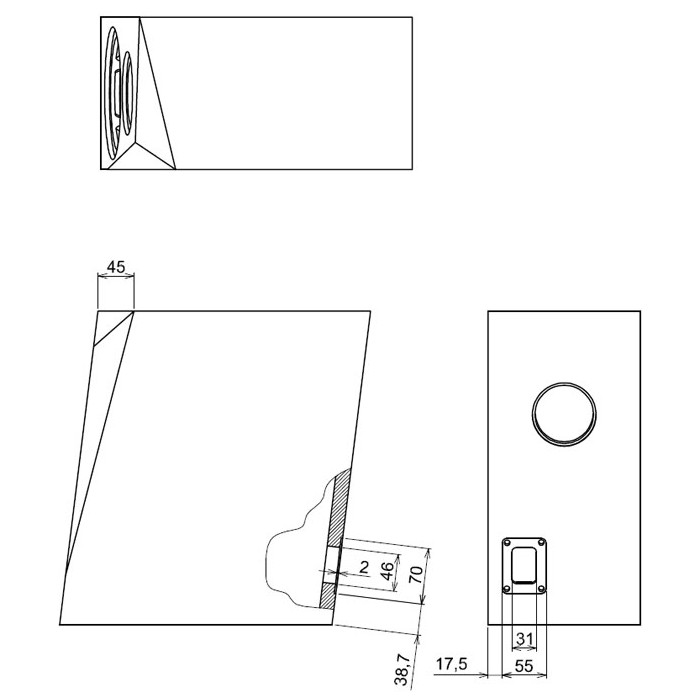

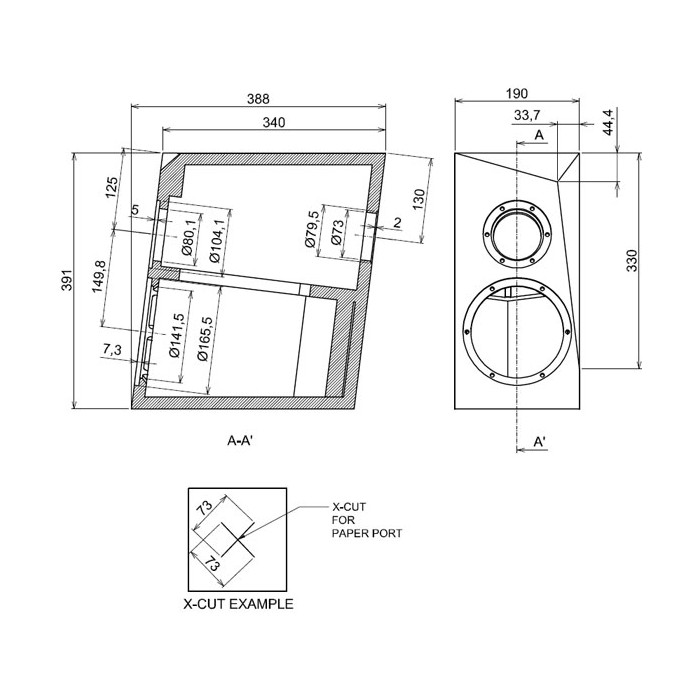

The ARA TX is an open source kit meaning the speaker is fully developed and documented by SB Acoustics and you are free to use the plans. The cabinet design is shared with the ARA and ARA Be, only the crossover of this open source kit will need to be sourced and build as DIY.

Note : Not available as full kit, read below for details.

The ARA TX features the top of the line TeXtreme® midwoofer SATORI MW16TX-4 and pairs it with the TeXtreme® tweeter SATORI TW29TXN-8 for a visually and acoustically stunning match.

Compared to the ARA and ARA Be the crossover topology is realised differently on the ARA TX. In the low frequency section there is only one single component directly in series with the signal path to the 6½” SATORI MW16TX-4. This series inductor is followed by a number of parallel LCR-networks to further shape the response and for break up control as well as perfect integration to the 29mm Textreme® tweeter and optimised tweeter network.

The result is very open and transparent sound that is both natural and very relaxed. The bass is deep and very convincing for a stand mount speaker.

The ARA’s faceted baffle is specially designed to reduce high frequency diffraction and yields superb imaging qualities. The 7° reclined cabinet ensures good time alignment resulting in sublime staging and pin point placement of instruments.

 Open Source Kit

The ARA TX is an open source kit meaning the speaker is fully developed and documented by SB Acoustics and you are free to use the plans. The cabinet design is shared with the ARA and ARA Be, only the crossover of this open source kit will need to be sourced and build as DIY.

Diameter
6"
Impedance
4 Ω
Power
70 W
Series
SATORI
Material
MDF
Classification
Bookshelf

Summary
