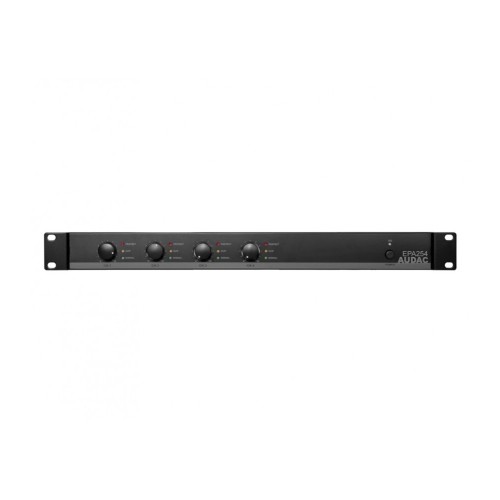

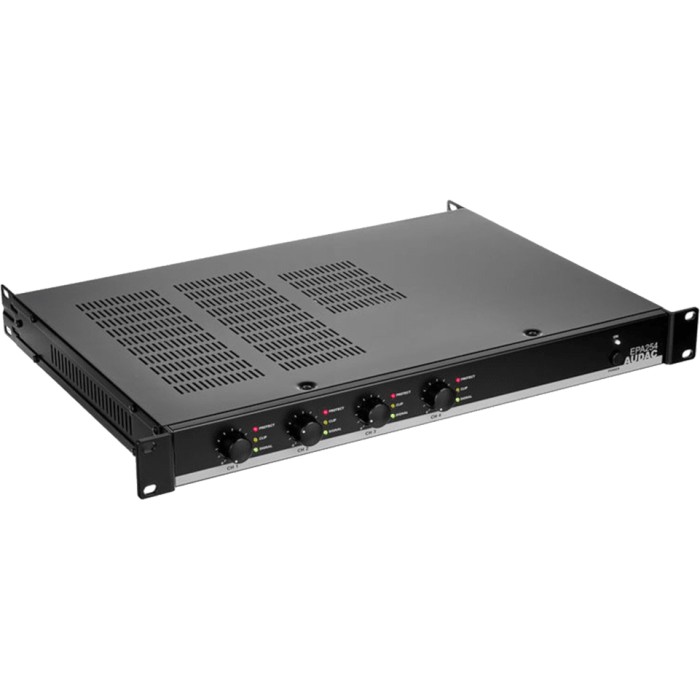

Audac EPA254 Four-channel class D amplifier with a power of 4 x 250 watts and a built-in crossover
Четириканален усилвател от клас D с мощност от 4 х 250 вата и вграден кросоувър Audac EPA254
Четириканален усилвател от клас D с мощност от 4 х 250 вата и вграден кросоувър Audac EPA254
Четириканален усилвател от клас D с мощност от 4 х 250 вата и вграден кросоувър Audac EPA254
Audac EPA254 Four-channel class D amplifier with a power of 4 x 250 watts and a built-in crossover
Четириканален усилвател от клас D с мощност от 4 х 250 вата и вграден кросоувър Audac EPA254
Четириканален усилвател от клас D с мощност от 4 х 250 вата и вграден кросоувър Audac EPA254
Четириканален усилвател от клас D с мощност от 4 х 250 вата и вграден кросоувър Audac EPA254

Audac EPA254 Four-channel class D amplifier with a power of 4 x 250 watts and a built-in crossover

1 pcs.
In Stock
€ 849.00
Tax included

4 x 250 Watt Class D Four-Channel Amplifier with Built-in Crossover

Technical specifications:

RMS/AES power:

@ 4 Ω stereo: 4 x 250 W

@ 8 Ω stereo: 4 x 130 W

@ 8 Ω bridged mode: 2 x 500 W
(0)
4x250W

Brand



4 x 250 Watt Class D Four-Channel Amplifier with Built-in Crossover

Lightweight Class D Amplifier

Energy-star Certified

Energy-saving standby mode

Convection cooling

Euro-terminal speaker outputs

Balanced XLR inputs with crossover switch

Integrated crossover

This energy-efficient four-channel stereo amplifier will automatically switch to standby mode when there is no audio signal (with a consumption of less than 1 watt in standby mode). Its low weight and compact 1U size make it ideal for both fixed and mobile installations. The use of Class D amplifier technology ensures superior efficiency as well as superb sound quality. Thanks to the completely passive cooling system, minimal maintenance is required, ensuring maximum reliability.

This four-channel design allows the use of two separate stereo signals. In combination with the integrated active crossover, the amplifier offers a complete solution for compact stereo applications in combination with a passive subwoofer. Numerous specific functionalities and modern circuitry guarantee optimal protection against overvoltage, overheating and overload. The input terminals are on balanced XLR connections. The speaker outputs are designed with euroterminals.

Technical specifications:

RMS/AES power:

@ 4 Ω stereo: 4 x 250 W

@ 8 Ω stereo: 4 x 130 W

@ 8 Ω bridged mode: 2 x 500 W

Frequency response (± 3 dB): 20 Hz - 20 kHz

Signal-to-noise ratio: > 90 dB

Total harmonic distortion + noise (THD+N) (@ 1 kHz): < 0.1%

Channel crossover (@ 1 kHz): > 70 dB

Amplifier technology: Class-D

Power supply: switchable, 100 ~ 240 V AC / 50 ~ 60 Hz

Power consumption: 438 W

Standby power consumption: 0.7W (30 min standby)

Input sensitivity: 0 dB (1V RMS)

Input Impedance: 12 kΩ Balanced

Input Connectors: 3-pin female XLR

Protections:

DC Short

Overheating

Overload

Signal Limiting

Cooling with natural convection

Operating Temperature: 0° ~ 40° @ 95% Humidity

Output Terminals: 2-pin Euroterminals (pitch - 5.08 mm):

Dimensions (W x H x D): 482 x 44 x 330 mm

Weight: 4.7 kg.

Mounting: 19 inch (rack)

Height: 1 U

Chassis: Metal

Color: Black
