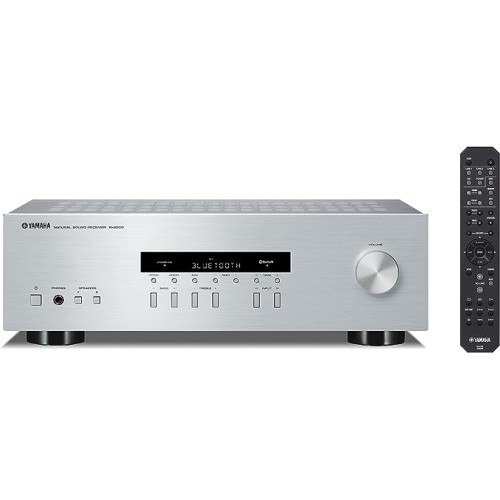

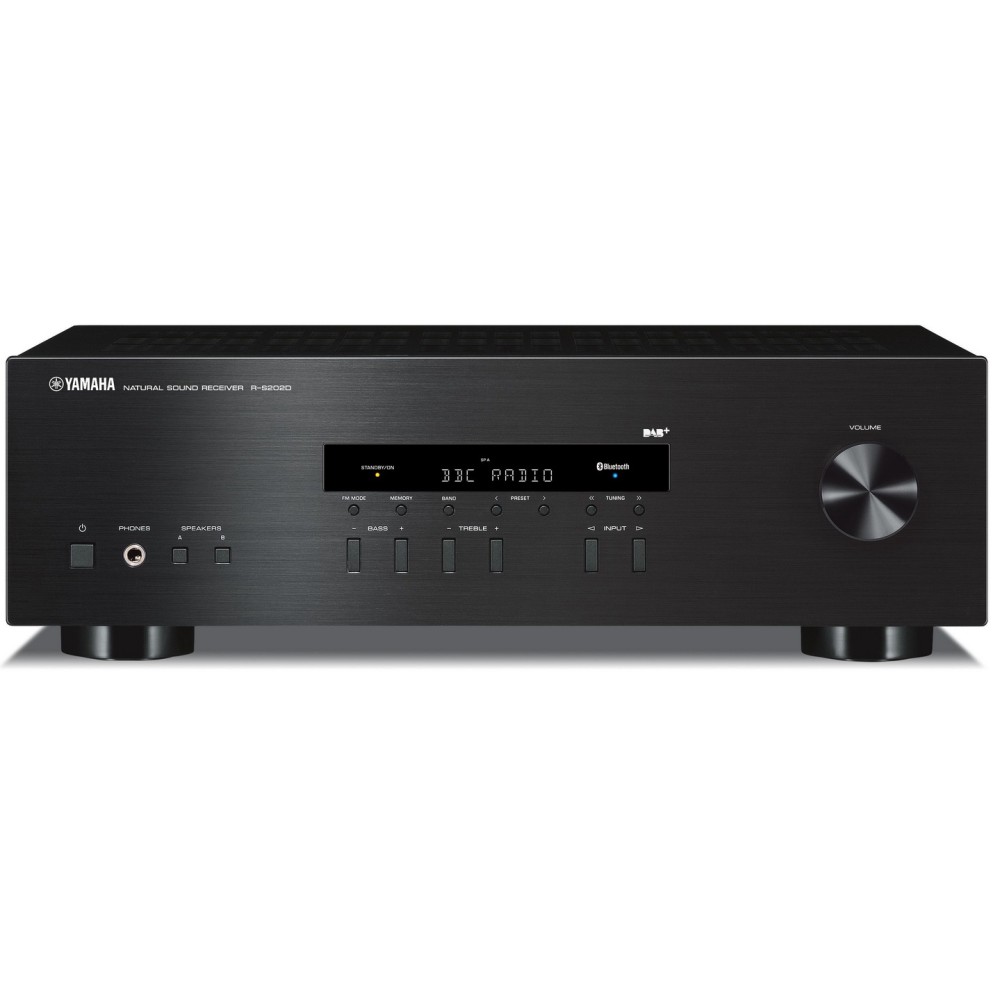

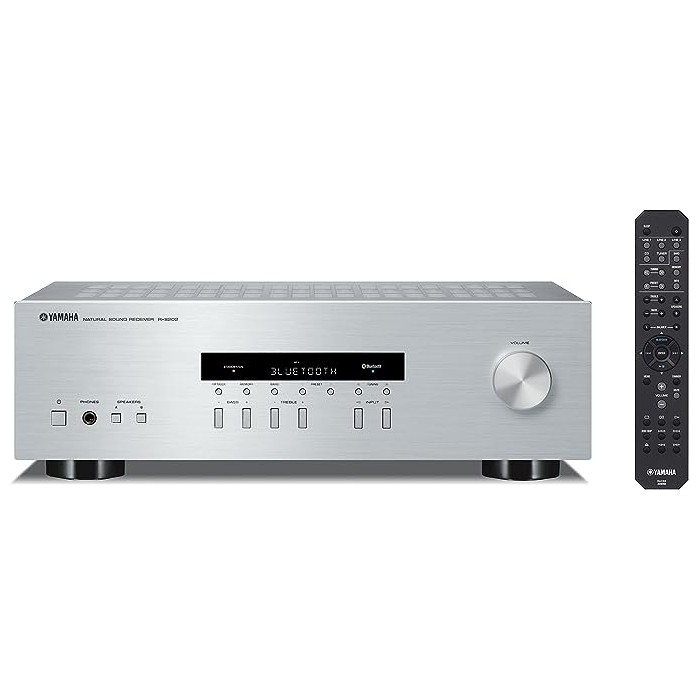

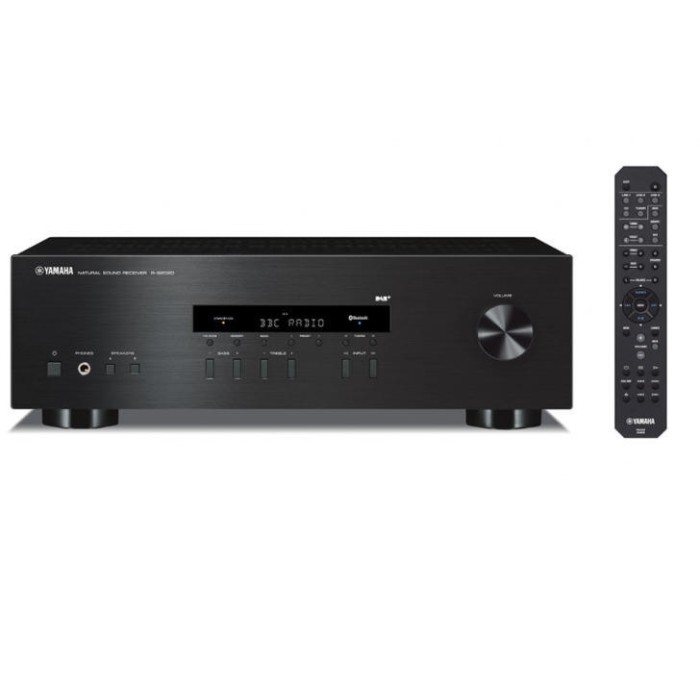

Yamaha RS-202D DAB Stereo Receiver

Yamaha High Sound Quality, Created by Rich Experience and Tradition, and High Technological Expertise

Yamaha, with a long history of 125 years as a musical instrument maker, also has a high reputation for HiFi components. The R-S202D was created by taking advantage of this rich experience and high technological expertise. Based on the concept of "Natural Sound", for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.

100 W x 2 High Output Power* and High Sound Quality Circuit Design

The R-S202D, with 100 W* x 2 high drive power that's above its class, has a high sound quality design that minimizes the length of signal routes and optimizes the circuit layout. Positioning the power transformer near the power amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound filled with clarity and a feeling of openness.

* 8 ohms, 40 Hz - 20 kHz, 0.2% THD

Bluetooth® Compatible for Wireless Music Streaming

The R-S202D provides Bluetooth® functionality to let you enjoy easy wireless music playback from smartphones and other devices. Use the display on your phone to select the songs from your library and hear them play with the full power and sound quality of your audio system.

Enjoy Digital Radio from DAB/DAB+ Tuner

DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name. You can preset 40 DAB/DAB+ stations.

Simple and Sophisticated Design

The R-S202D inherits the simple and sophisticated design style that Yamaha HiFi audio is famous for. With an elegant hair line finish, it harmonizes beautifully with other HiFi audio equipment. The operating buttons and volume knobs also show our commitment to simplicity and ease of use.

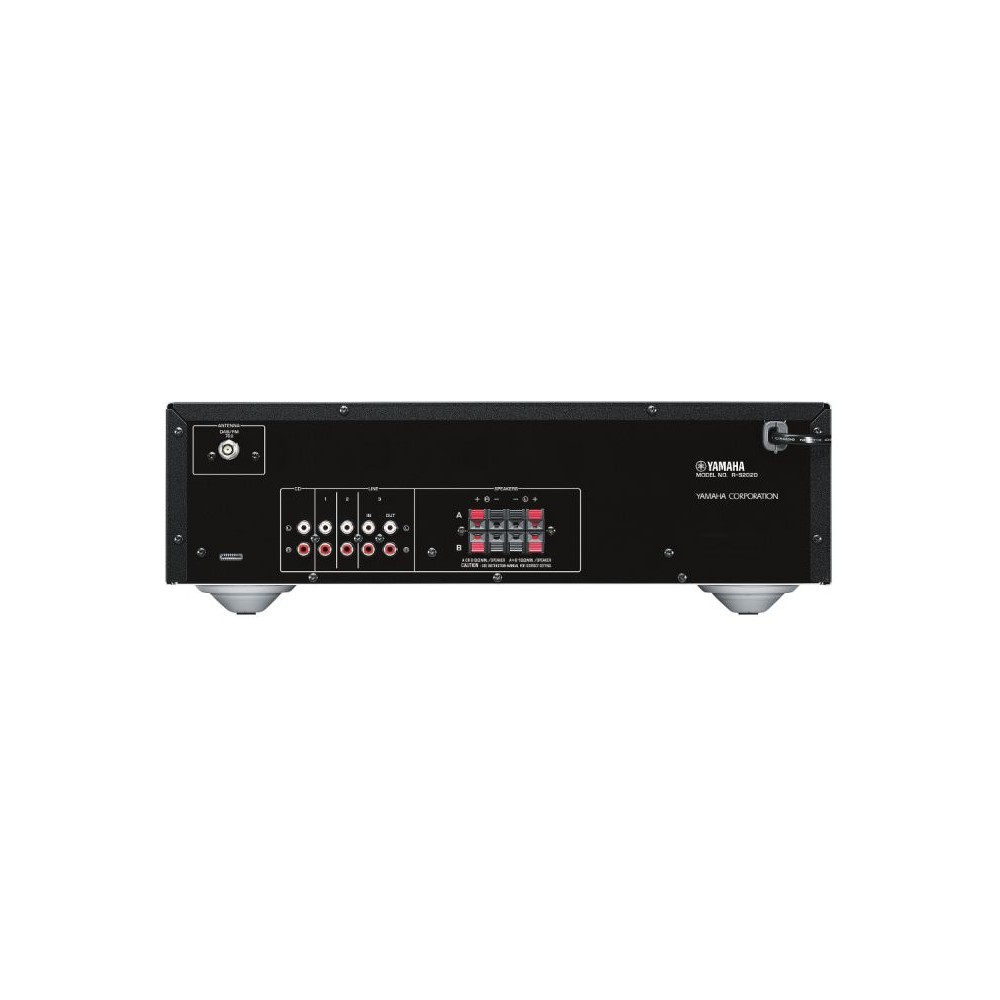

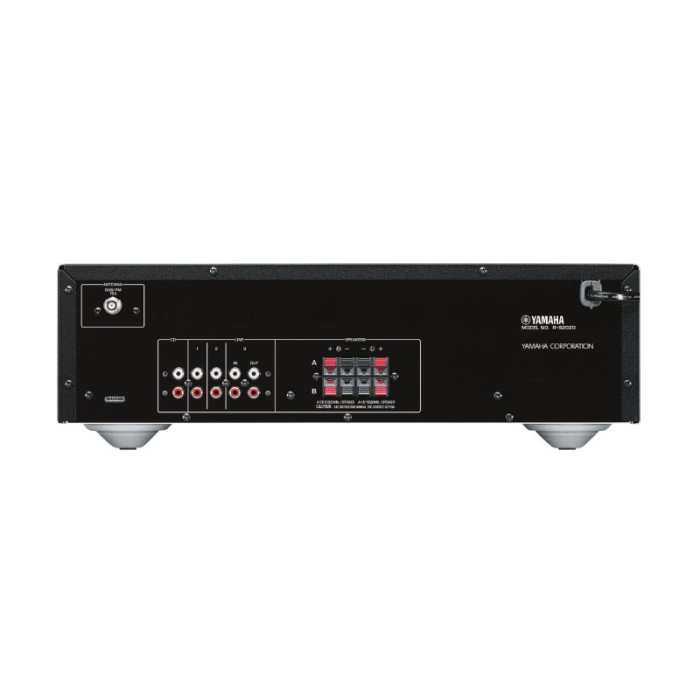

Speaker Selector and Speaker Terminals for Two Systems

Equipped with speaker terminals for two systems, this receiver lets you connect two sets of speakers. The speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system (A or B) or from both (A+B).

Power Saving

A power management function automatically cuts off the power (switches to standby mode) when the receiver has not been operated for a long time. It can be set to 2, 4, 8 or 12 hours, or off. In addition, power consumption during standby is only 0.5 W, achieving good energy saving performance.

• Other Notable Features
• • Simple design remote control
• • Head phone terminal
