Temporarily out of stock
€ 132.42
Tax included

The SMSL C100 presents itself as a compact and affordable DAC, but with the same care given to the more expensive models of the brand. Its components are indeed specially selected for their quality and efficiency, allowing the C100 to provide a precise sound reproduction. It adds to this a complete connectivity and a Bluetooth wireless connectivity for a foolproof versatility.

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)

Brand



SMSL C100

DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

The SMSL C100 presents itself as a compact and affordable DAC, but with the same care given to the more expensive models of the brand. Its components are indeed specially selected for their quality and efficiency, allowing the C100 to provide a precise sound reproduction. It adds to this a complete connectivity and a Bluetooth wireless connectivity for a foolproof versatility.

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

AKM AK4493S DAC

The digital / analog conversion stage of the SMSL is based on the use of a AKM AK4493S DAC chip. This model ensures excellent performances with notably a THD+N reaching here 0.00013% for a restitution at the same time precise, rich and dynamic.

XMOS XU316 USB Interface

The use of a USB XMOS XU316 interface allows the C100 to read high resolution files for the most faithful sound reproduction possible. It supports audio streams up to PCM 32bit 768kHz and DSD512 via its USB-B input.

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

CK-03 Clock Circuit & Filtered Power Supply

Like the vast majority of SMSL devices of this generation, the C100 embeds the proprietary CK-03 clock circuit, allowing excellent synchronization of the clock signals for the lowest possible jitter. On the other hand, the power supply circuit benefits from an efficient filtering system, allowing to provide a clean and stable power supply to all the audio circuits from a single USB-B port.

MQA Decoder

In addition to supporting high resolution PCM and DSD streams, the SMSL C100 is able to decode MQA (Master Quality Authenticated) files. These files allow to enjoy a very high sound quality, as close as possible to the original signal captured in a recording studio.

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

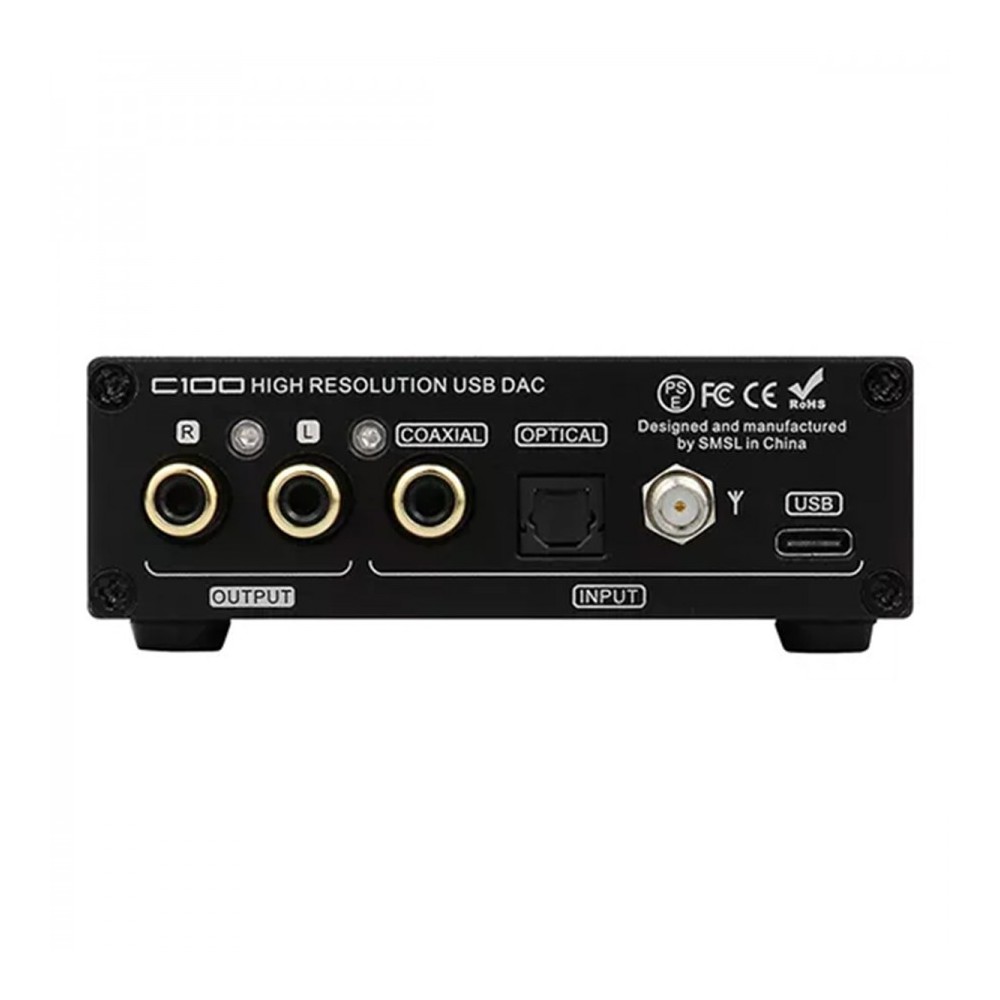

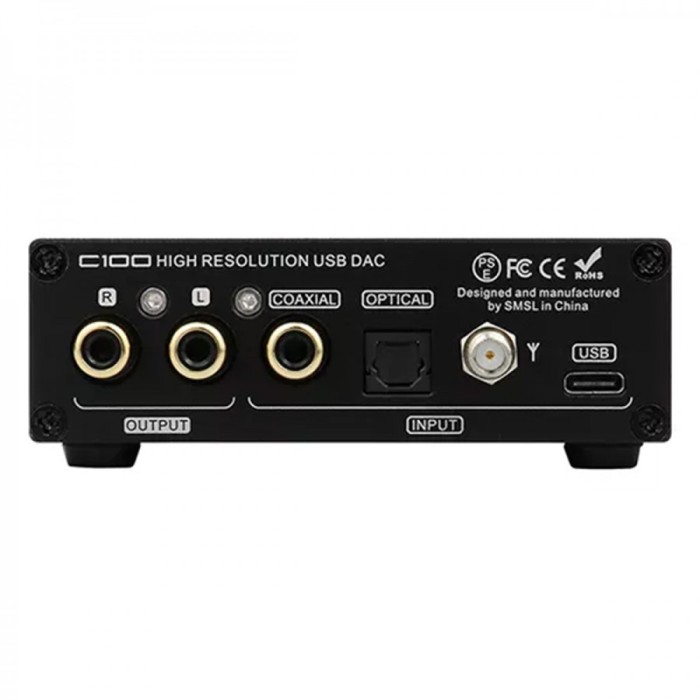

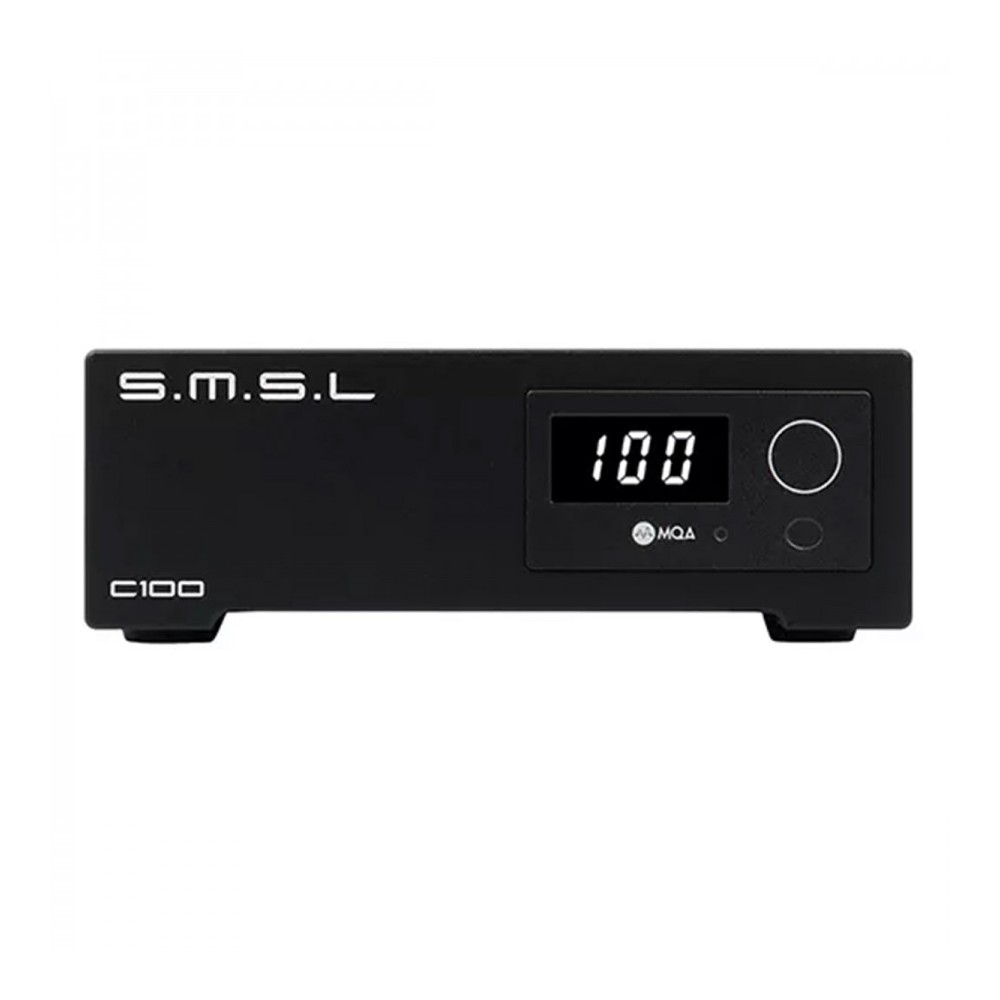

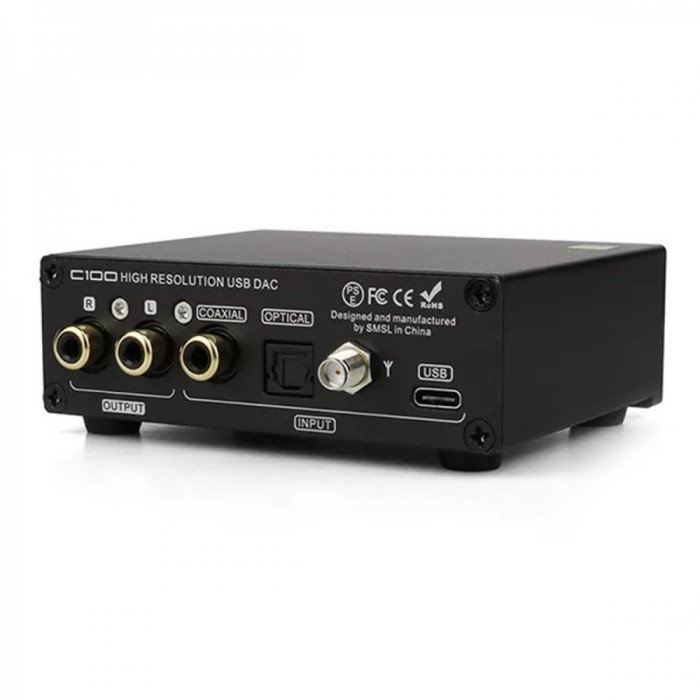

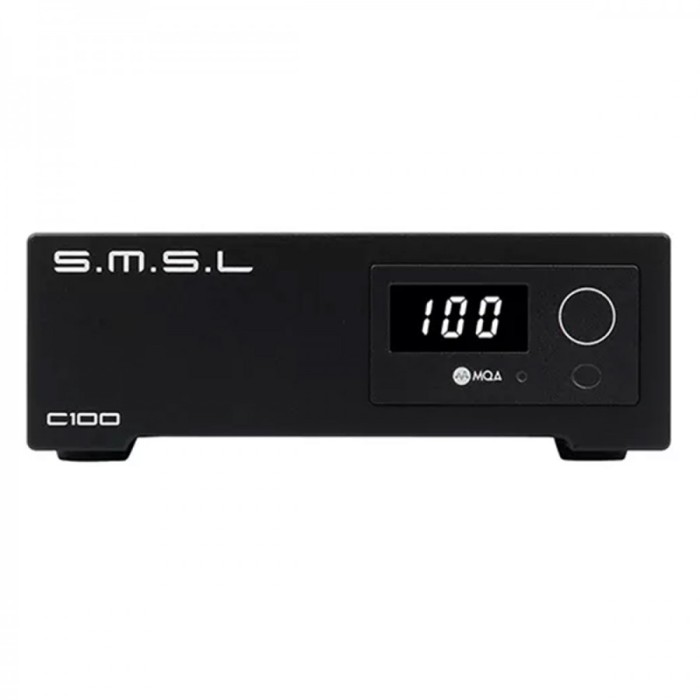

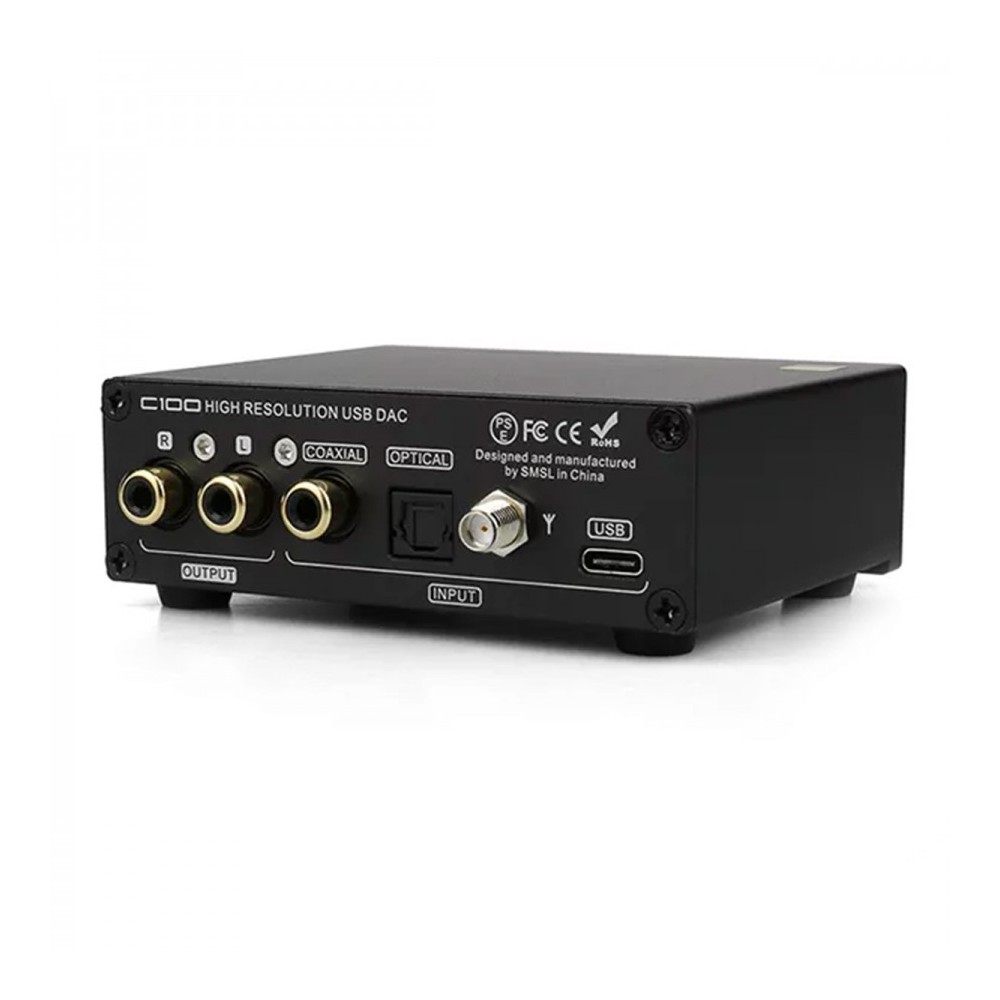

1 Screen
2 Touch button
3 MQA LED indicator
4 IR receiver
5 Stereo RCA output
6 Optical Toslink input
7 Coaxial input
8 Bluetooth antenna
9 USB / power supply input

Technical characteristics

Specifications
Prodcut type DAC
DAC chip AKM AK4493S
Inputs Bluetooth 5.0
1* USB-C
1* Optical Toslink
1* Coaxial
Outputs 1* Stereo RCA
USB transmission mode Asynchronous
USB compatbility Windows 7 / 8 / 8.1 / 10 / 11
Mac OSX 10.6 or later
Linux
Output level 2Vrms
THD+N 0.00013% (-117dB)
Dynamic range 121dB
SNR 121dB
Supported sampling rates USB : PCM up to 32bit 768kHz, Native DSD up to DSD512
Optical / Coaxial : PCM up to 24bit 192kHz
General
Consumption < 5W
Standby consumption < 0.1W
Dimensions (W*D*H) 77.5*95*32mm
Weight 190g
Housing material Aluminum
Color Black
Package 1x SMSL C100

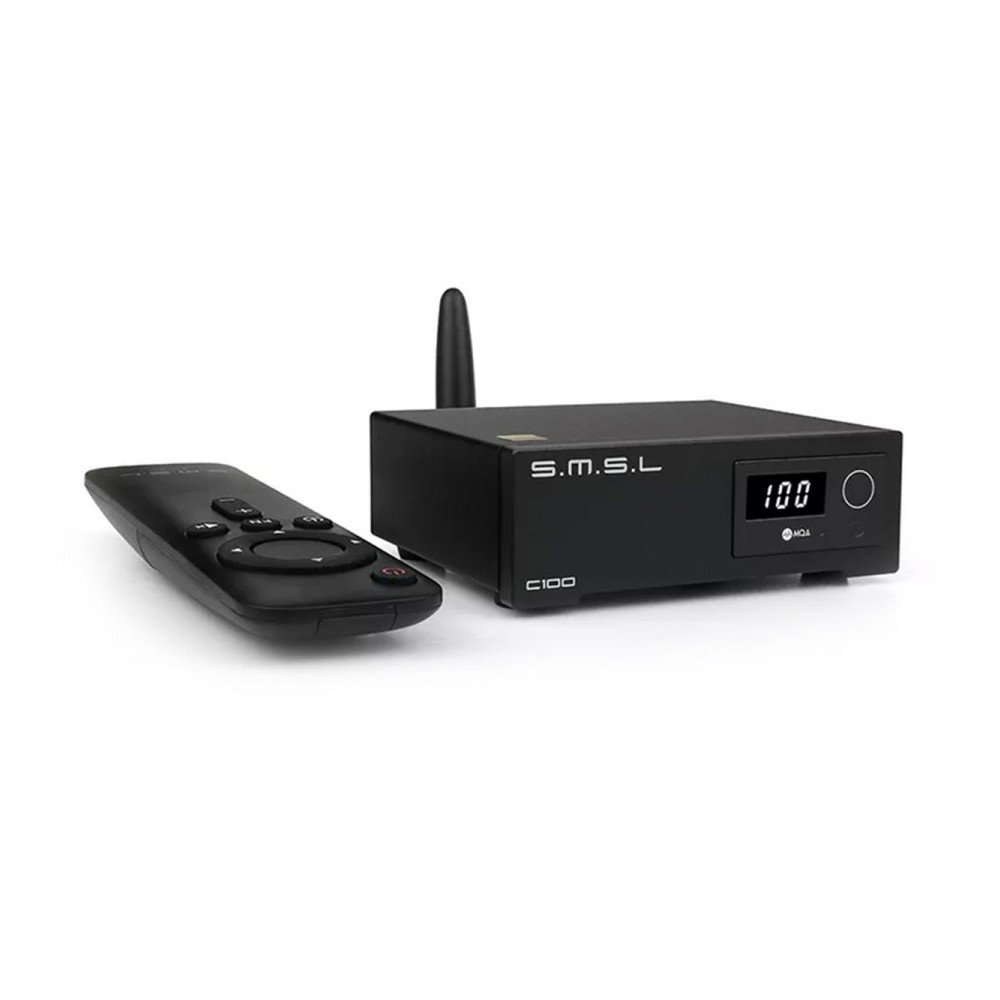

1x Remote control
1x Antenna
1x USB-A to USB-C cable
Type
DAC converters
